Bleed Anhydrous Ammonia System

Before unhooking nurse tank from applicator or transporting machine, high pressure anhydrous ammonia must be bled from the nurse tank hose. Operating applicator in field with nurse tank valve

closed and distribution system on removes the majority of high pressure anhydrous ammonia. After system is bled in this manner remaining shutoff valves MUST be closed and bleed valves opened.

KB78086,0000386 -19-02APR08-1/5

causym CAUTION: Read all information in Safety section before working with anhydrous ammonia systems and always wear protective clothing and equipment. Exposure to anhydrous ammonia can cause injury or death to you or others. (See WORKING WITH ANHYDROUS AMMONIA in safety section.)

causym CAUTION: Complete system bleeding can take a considerable amount of time depending on air temperature and volume of anhydrous ammonia in lines. Always verify system is completely bled before transporting.

1. Position tank and machine down wind from where you are standing.

N76377

Anhydrous Ammonia Tank

KB78086,0000386 -19-02APR08-2/5

2. Close tank withdrawal valve (A).

3. Lower machine into ground, turn ON master switch of controller (See manufacturer's operation manual), and make one field pass.

4. Turn OFF application system. (See manufacturer's operation manual.)

5. Position tank and machine down wind from where you are standing.

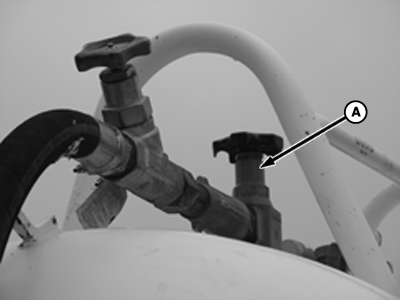

A-Tank Withdrawal Valve

N76740

KB78086,0000386 -19-02APR08-3/5

N76759

Supply Hose Bleeder Valve

N80240

Emergency Disconnect Bleeder Valve

N76757

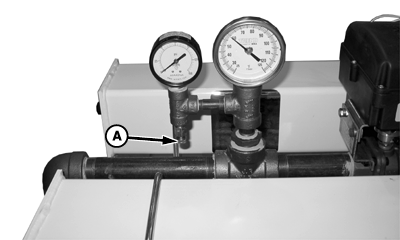

Applicator Bleeder Valve
N76748

Anhydrous Ammonia Vapor


A-Bleeder Valves-Supply Hose and Applicator

B-Anhydrous Ammonia Vapor

C-Emergency Disconnect-Bleeder Valve



KB78086,0000386 -19-02APR08-4/5

causym CAUTION: Liquid anhydrous ammonia may still be present in hose. Point bleed valve outlet away from body and towards ground as bleeder valve is opened to avoid contact with liquid anhydrous ammonia. Exposure to anhydrous ammonia can cause serious injury or death to you or others.

causym CAUTION: Never hold supply hose by valve handle. Carrying supply hose by valve

handle can lead to exposure to anhydrous ammonia and cause serious injury or death to you or others. Never hold supply hose by valve handle.

6. Bleed off anhydrous remaining ammonia in system by opening bleeder valves (A) in supply hose and emergency disconnect (C), and applicator. Wait until anhydrous ammonia vapor (B) has COMPLETELY dispersed.

KB78086,0000386 -19-02APR08-5/5
