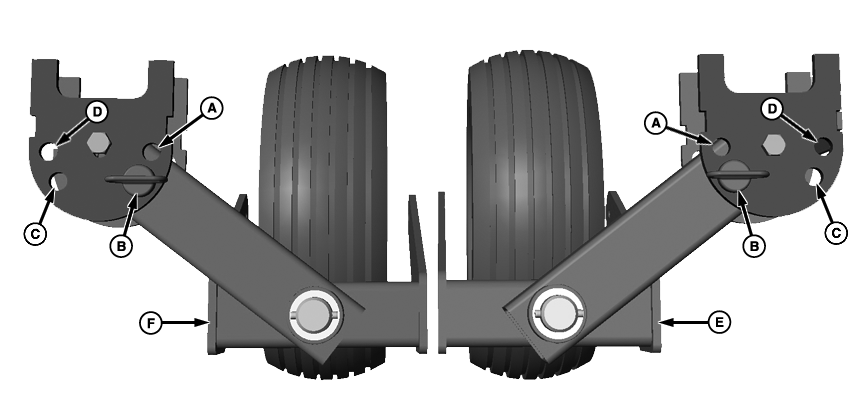

Stabilizer wheels have two settings available. Most field work and transporting will be done at the regular operation setting (C). For mid-season work the machine can be set for side-dressing on 11 row (B). IMPORTANT: DO NOT USE SHIPPING SETTING (A) IN FIELD, damage to machine may occur. ALWAYS set stabilizer wheels to setting (B or C) when moving from field-to-field, and all field work. A-Shipping, Only B-Operation, For Side-Dress 11 Row Only C-Regular Operation, For 15 Row Only D-Not Used E-Right-Hand Side F-Left-Hand Side G-Machine Center

Regular Operation-15 Row Right-Hand Side Shown

OUO6061,0002895 -19-09JAN08-1/2

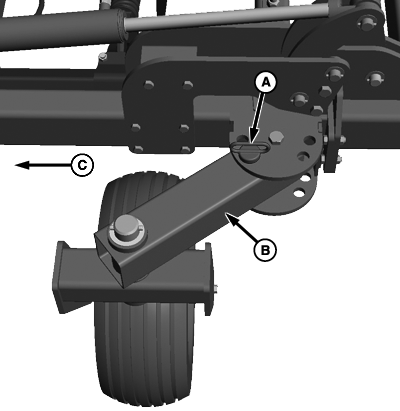

1. Adjust Stabilizer Wheel- Pull pin and lock pin (A) and align wheel arm (B) to desired setting. Always mirror both wheels on machine. 2. Reinsert pin and lock pin. 3. Repeat process on other side. A-Pin and Lock Pin B-Wheel Arm C-Machine Center

Side Dress 11 Row Setting
