Bleeding Wing-Fold Hydraulic Cylinders

IMPORTANT: Follow bleed procedure EXACTLY as shown. Hydraulic reservoir MUST be filled prior to bleeding and kept FULL throughout entire bleed procedure.

If performing bleed procedure on machines running different than 1800 rpm, bleed rate times MUST be adjusted to a 113 Lpm (30 gpm) per minute rate. Example: If tractor is running at 57 Lpm (15 gpm), then double all bleed times.

NOTE: If proper responses are not observed during bleed procedure. Refer to Troubleshooting section in Operator's Manual.

causym CAUTION: Insure cylinders are supported firmly with wood block before bleeding cylinders. Wire could also be used to retain wheel module cylinders. Failure to do this may result in cylinder falling and causing serious injury to you or others.

1. Support wing-fold cylinders.

X9811
N37063

OUO6061,00028A0 -19-11JAN08-1/4

2. Remove and retain wing-fold cylinder rod end hardware (A).

3. Support cylinder with wood block.

4. Repeat process on all wing-fold cylinders.

5. Verify tractor is full of hydraulic oil.

6. Run tractor to 1800 rpm.

7. Fully extend and retract all cylinders at least two times, maintaining hydraulic pressure at full extension for at least 30 seconds.

8. Extend cylinders one more time, maintaining pressure at full extension for one minute.

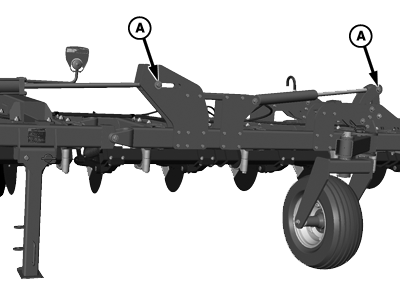

N78558


A-Wing-Fold Cylinder

OUO6061,00028A0 -19-11JAN08-2/4

9. Attach cylinder rod end (A) between wing-fold plates (B) using 1-1/4 x 7.2 in. drilled pin (C), 1-9/32 x 2-3/8 x 1/4 in. washers (D) against outside of swing plates and 21/64 x 1-3/4 in. spring pins. Repeat process on other cylinder.


A-Rod End
B-Wing-Fold Plates
C-Drilled Pin 1-1/4 x 7.2 in.
D-Washer, 1-9/32 x 2-3/8 x 1/4 in. (2 Used)

N78559

Main Frame Wing-Fold Cylinder Rod

OUO6061,00028A0 -19-11JAN08-3/4

10. Attach cylinder rod end between linkage arms (A), with center linkage plate (B) between clevis (C) using 1-1/4 x 5.3 in. drilled pin (D), 1.28 x 2 x 0.06 in. washers (E) against outside of linkage arms and 21/64 x 1-3/4 in. spring pins. Repeat process on other cylinder.

IMPORTANT: If an oil leak is found during bleed procedure, stop oil leak then restart procedure.

11. Extend cylinders and keep in continuous flow for 2 minutes.

IMPORTANT: After machine is folded, confirm that cylinders ARE NOT UNDER LOAD by moving cylinders side-to-side. If under load, adjust as required.

12. Adjust wing-fold cylinder rods as required after folding machine to verify wings are NOT UNDER LOAD .

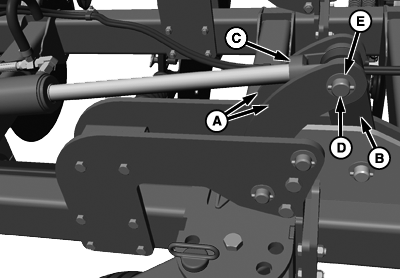

N78560

Wing Frame Wing-Fold Cylinder Rod


A-Linkage Arms
B-Center Linkage Plate
C-Clevis
D-Drilled Pin 1-1/4 x 5.3 in.
E-Washer, 1.28 x 2 x 0.06 in. (2 Used)
