Locking SCV Lever For Active Down-Pressure Operation

NOTE: Clip keeps lever from returning to neutral to provide constant oil pressure to down pressure valve, as required, to maintain your chosen pressure setting.

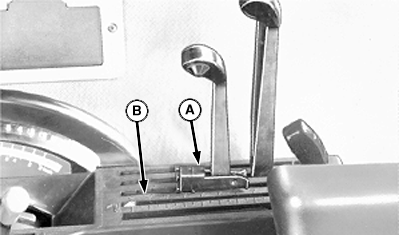

John Deere 55-60 Series Tractors- Lever lock clip (A) must be used to hold coulter gang control lever in down pressure position (B).


A-Lever Lock Clip
B-Down Pressure Position

RW5845

OUO6061,00028A6 -19-12NOV07-1/2

Electro/Hydraulic SCV Controlled Tractors- Push SCV II control (A) forward until detent click is heard. With SCV II time knob (B) set to "continuous", constant oil pressure will go to down pressure valve, as required, to maintain your chosen pressure setting.


A-SCV II
B-Time Knob

N78562

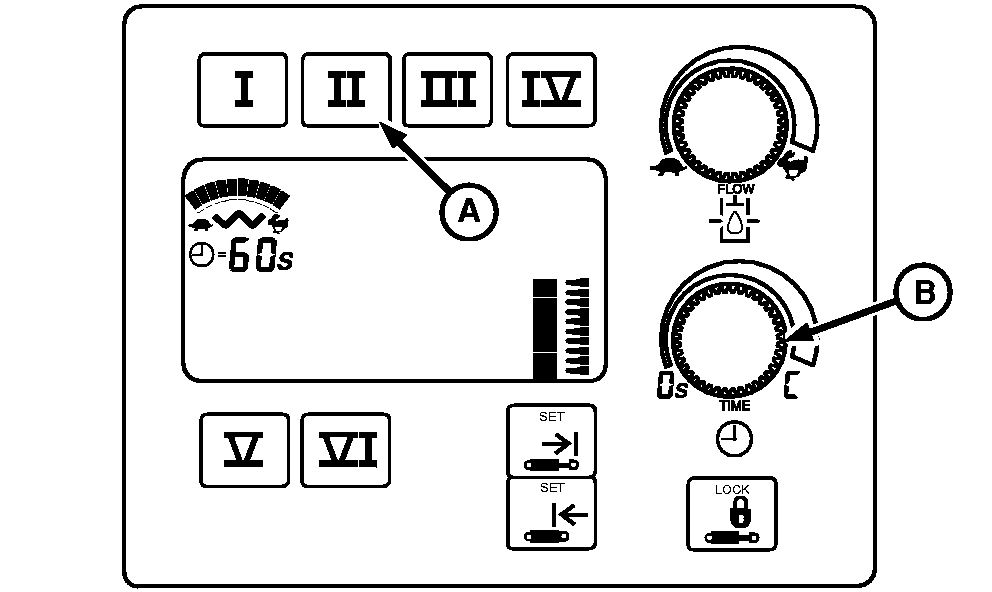

SCV II and Time Knob 8000-9000 Series Tractors

N78563

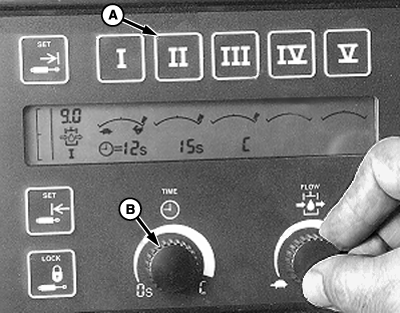

SCV II and Time Knob 8030-9030 Series Tractors

OUO6061,00028A6 -19-12NOV07-2/2
