Adjusting High Speed Fertilizer Openers Down-Pressure-Tractors With Electro/Hydraulic Closed Center Systems

IMPORTANT: Adjust fertilizer opener down-pressure, as required, to keep openers in firm contact with soil, but DO NOT use more down-pressure than necessary or excessive wear and damage to machine could result.

A tractor with an open-center hydraulic system MUST BE equipped with Open Center Hydraulic Kit with Change Valve. (See your John Deere dealer for installation.)

1. (See UNDERSTANDING ACTIVE HYDRAULIC FERTILIZER OPENER DOWN-PRESSURE SYSTEM in this section to determine initial pressure setting.)

OUO6061,00028A7 -19-03JAN08-1/3

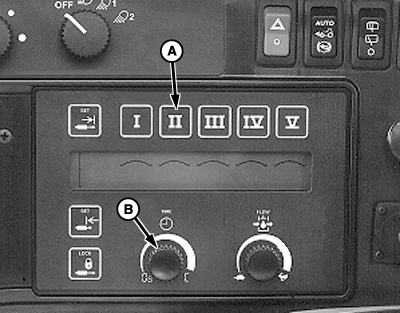

2. Push SCV II (A) forward until detent click is felt. Time detent knob (B) must be set to "continuous".


A-SCV II
B-Time Detent Knob

N79473

OUO6061,00028A7 -19-03JAN08-2/3

3. While watching pressure gauge (B), adjust down-pressure to desired setting by rotating knob (A). Once set, lock knob in position with collar (C).

4. Make a trial pass in field.

5. If High Speed Fertilizer Openers penetration is not satisfactory, adjust hydraulic pressure as required.


A-Knob
B-Pressure Gauge
C-Collar

N78564

OUO6061,00028A7 -19-03JAN08-3/3
