Unload Machine

N78575
N78872

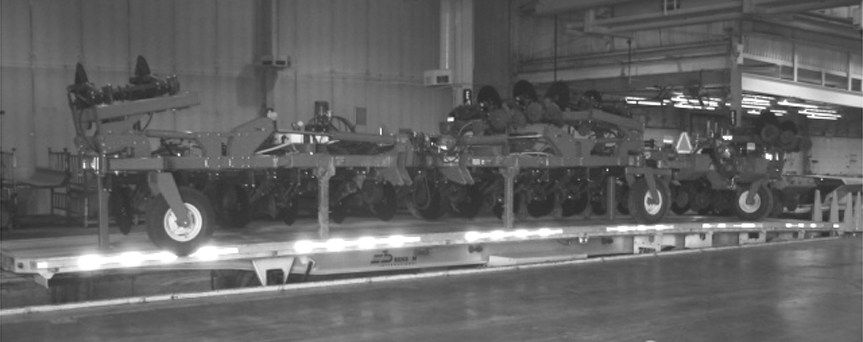

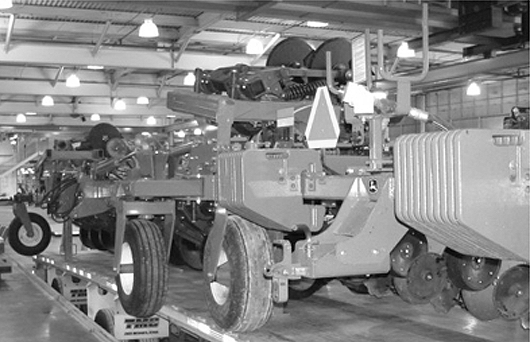

causym CAUTION: Machine weighs 5987 kg (13200 lb.) and can cause serious injury or death to you or others. To unload machine, use either a side load dock or lift machine off flatbed using a hoist suitable to lift entire machine.

IMPORTANT: Hydraulic cylinders are not installed on machine and strapped to machine frame. Hydraulic cylinder system is

already charged from the factory and is ready to be attached to tractor after unloading.

1. Remove all shipping straps, wheel braces and chocks from machine on flatbed. DO NOT REMOVE rockshaft straps until machine has been unloaded.

OUO6061,00028A9 -19-08APR08-1/4

IMPORTANT: Stabilizer wheel must be set to transport position before unloading or damage to machine can occur.

2. Pull pin (A) and align wheel to transport/operation position (B). Reinsert pin and lock pin.

3. Repeat process on other side.


A-Pin
B-Transport/Operation Position
C-Machine Center

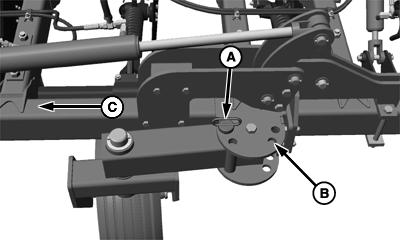

N79477

Shipping Position Only

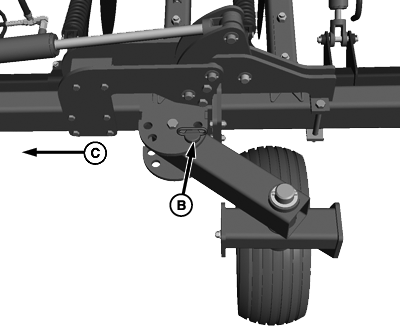

N79678

Transport/Operation Position

OUO6061,00028A9 -19-08APR08-2/4

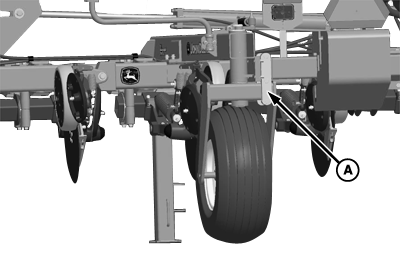

IMPORTANT: Rear wheel bracket (A) must be removed before unloading or damage to machine can occur.

4. Remove and discard rear wheel bracket (A). Repeat process on other side.


A-Wheel Bracket

N79478

OUO6061,00028A9 -19-08APR08-3/4

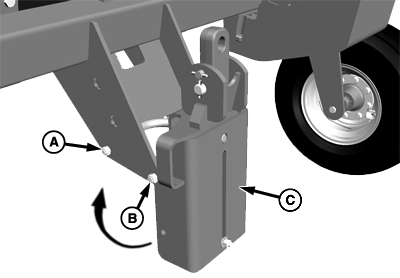

5. Remove cap screw and lock nuts (A) on both rear hitch sides.

6. Loosen cap screw (B) and on other side.

7. Swing rear hitch back, align holes and reinstall cap screws and lock nuts.

8. Tighten all hardware to specification.

Specification

Rear Hitch Cap Screws -Torque 271 N·m (200 lb-ft)

causym CAUTION: Machine weighs 5987 kg (13200 lb.) and can cause serious injury or death to you or others. If using a hoist it must be capable to lift entire machine evenly.

9. Machine MUST be unloaded either by rolling off a side load dock or lifted using a hoist capable of lifting entire machine.

10. Move machine to flat even ground.

N79461


A-Cap Screw and Lock Nut (2 Used)
B-Cap Screw
C-Rear Hitch Link

OUO6061,00028A9 -19-08APR08-4/4
