Adjusting Machine Rear Weight

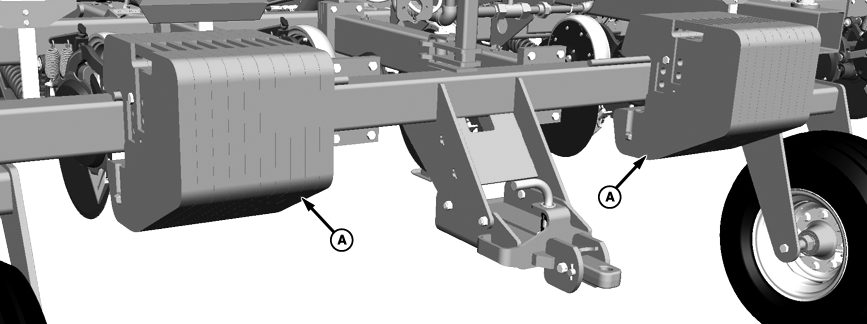

A-Machine Weights

causym CAUTION: Rear weights (A) weigh 45 kg (100 lb.) each and can cause injury to you or others. Use care when removing and installing on machine.

IMPORTANT: Existing rear machine weights MUST REMAIN ON REAR HITCH in order for machine to operate properly. If weights are removed, damage to machine can occur.

EXISTING REAR MACHINE WEIGHTS MUST REMAIN ON MACHINE IN ORDER FOR MACHINE TO OPERATE PROPERLY. Machine is factory set with 20 Quik-Tatch ™ weights totalling 907 kg (2000 lb.). If more weight is required, a maximum of 12

weights totaling 453 kg (1200 lb.), six per side can be added for a total machine rear weight of 1361 kg (3200 lb.). Weights MUST be equal on rear hitch sides. Refer to table to determine weight maximum. Adding more weight than specified can damage machine.

	Weight Quantity	kg	(lb.)
Single Weight	1	45	(100)
Existing Machine Rear Weights	20	907	(2000)
Maximum Machine Rear Weights	32	1360	(3200)

Quik-Tatch is a trademark of Deere & Company

OUO6061,00028C5 -19-07APR08-1/1
