Positioning Drawbar

IMPORTANT: On some tractor models, drawbar must be removed to prevent machine interference and damage.

NOTE: For heavier residue, it is important to remove drawbar.

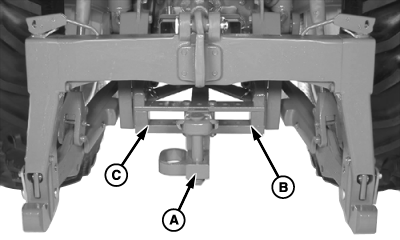

If necessary, remove tractor drawbar or place drawbar (A) in short, high position. Set drawbar to extreme right-hand (B) or left-hand (C) side of support.

A-Drawbar
B-Right-hand Side
C-Left-hand Side

OUO6061,00028C6 -19-16NOV07-1/1
