Adjusting 3-Point Hitch

Adjust lift link dimensions (A) and center link dimension (B) for operating depth.

(See your tractor Operator's Manual for adjusting lift links and center links, setting lateral float and load/depth control, and using draft control.)

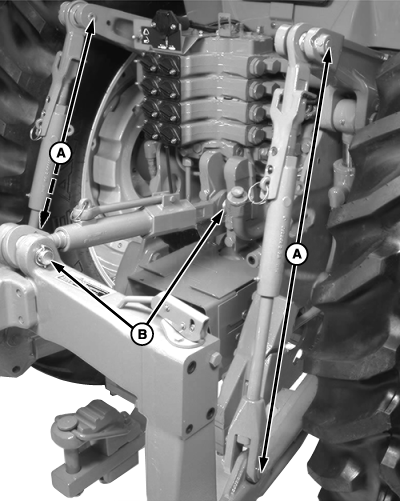

A-Lift Link Dimension
B-Center Link Dimension

OUO6061,00028C8 -19-20NOV07-1/1
