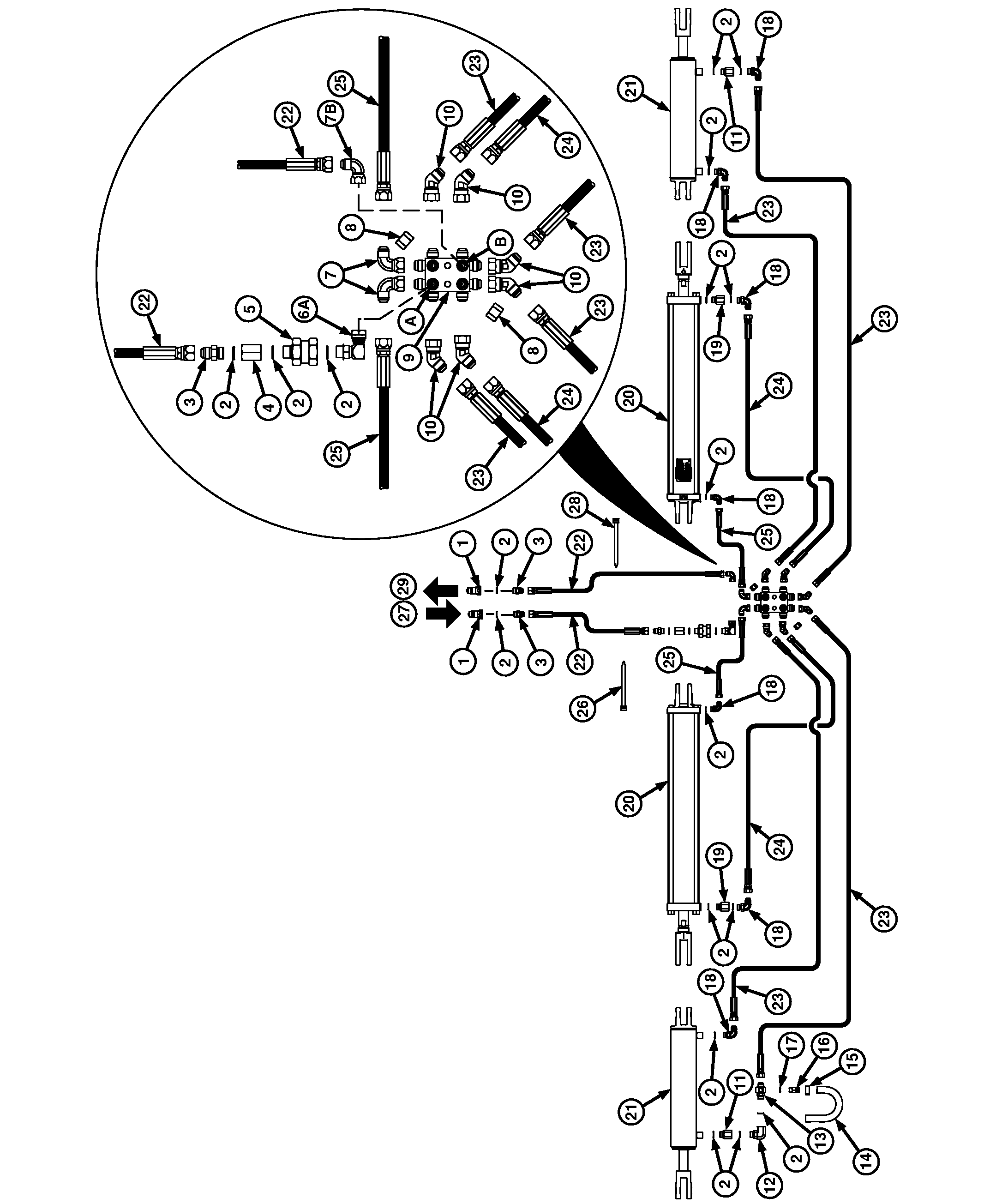

1-Coupler (AR94522) (2 Used)
2-O-Ring (R26375) (18 Used)
3-Fitting (R27237) (3 Used)
4-Connector (R30815)
5-Filter (AN260207)
6-Elbow 90° With Swivel, Location 6A on Manifold, Front Face Top Left Port (AN261475)
7-Elbow 90°, Location 7B on Manifold, Front Face Bottom Right Port (AH75164) (3 Used)
8-Cap, (R31736) (2 Used)
|
9-Manifold (N239385)
10-Elbow 45° (AH19770) (6 Used)
11-Restrictor, 1.4 mm (0.055 in.) Outside Cylinders (N233431) (2 Used)
12-Elbow 90° (AE14428)
13-Union Fitting (AW16707)
14-U-Hose (R38556)
15-Clamp (AR21837)
16-Retainer (AA29209)
17-O-Ring (R26448)
18-Elbow 90° (AT32332) (7 Used)
|
19-Restrictor, 2.2 mm (0.089 in.) (N233434) (2 Used)
20-Cylinder 4 x 32 in. (RE21220) (2 Used)
21-Cylinder 3 x 15.98 in. (AH176895) (2 Used)
22-Hose, 1/2 x 61 in. (1549 mm) (AA46037) (2 Used)
23-Hose, 3/8 x 170.86 in. (4339 mm) (AA40468) (4 Used)
24-Hose, 3/8 x 64 in. (1626 mm) (AN280816) (2 Used)
|
25-Hose, 3/8 x 22-1/2 in. (572 mm) (AN230342) (2 Used)
26-Pressure Line, Use Green I Pressure Tie Band (N238904)
27-Pressure Line, Use Left SCV I
28-Return Line, Use Green I Return Tie Band (N238905)
29-Return Line, Use Right SCV I
|
