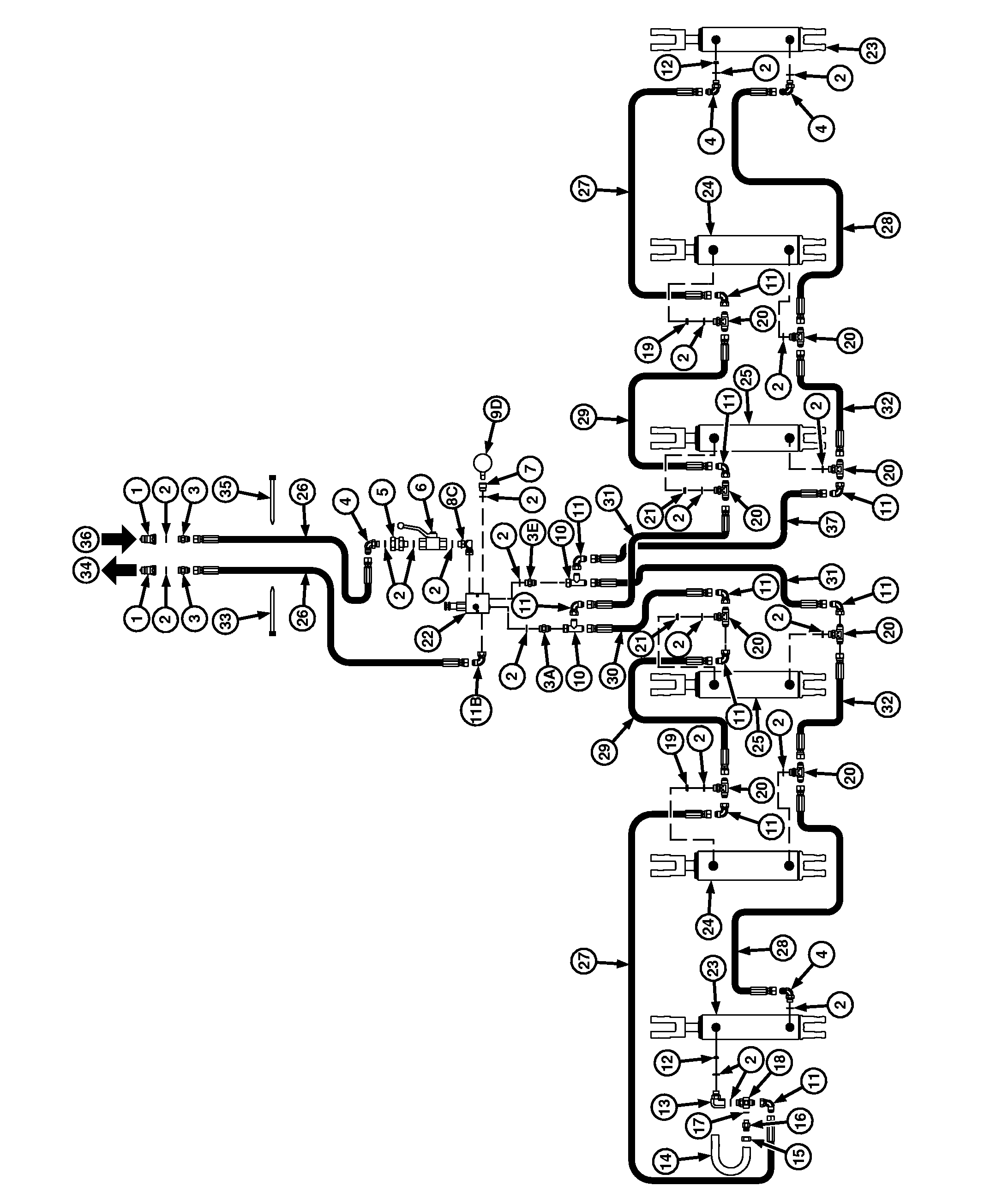

1-Internal Half Coupler, (AR94522) (2 Used)
2-O-Ring, (R26375) (21 Used)
3-Adapter, Location 3A To RE Port, And 3E To REG Port (R27237) (4 Used)
4-Elbow, 90° (AT32332) (4 Used)
5-Filter (AN260207)
6-Valve (AN281426)
7-Adaptor (H35112)
8-Elbow 90°, Location 8C To V1 Port (AN261475)
9-Dial Gauge, Location 9D To GAUGE Port (AN280712)
10-T-Fitting, (AN33434) (2 Used)
11-Elbow 90°, Location 11B To V2 Port (AH75164) (11 Used)
|
12-Orifice 1.58 mm (0.0625 in.) (N155007) (2 Used)
13-Elbow 90° (AE14428)
14-Hose, Vent (R38556)
15-Clamp (AR21837)
16-Valve, Thermal Relief (AA29209)
17-O-Ring (R26448)
18-Union Fitting (AW16707)
19-Orifice 1.994 mm (0.0785 in.) (N117554) (2 Used)
20-T-Fitting, (AN140263) (8 Used)
21-Orifice, 1.7 mm (0.067 in.) (N114610) (2 Used)
22-Down Pressure Valve (AN280713)
23-Cylinder (AH212766) 70 x 203 mm (2.75 x 8 in.) (2 Used)
|
24-Cylinder (AH214207) 82.5 x 203 mm (3.25 x 8 in.) (2 Used)
25-Cylinder (AH212757) 76 x 203 mm (3 x 8 in.) (2 Used)
26-Hose, 1/2 x 61-15/64 in. (1550 mm) (AA46037) (2 Used)
27-Hose, 1/2 x 94.49 in. (2400 mm) (AT155295) (2 Used)
28-Hose, 1/2 x 90 in. (2286 mm) (AN240195) (2 Used)
29-Hose, 1/2 x 116.14 in. (2950 mm) (AA40318) (2 Used)
30-Hose, 1/2 x 26.50 in. (673 mm) (AA31577)
|
31-Hose, 1/2 x 31.026 in. (788 mm) (AA47290) (2 Used)
32-Hose, 1/2 x 112.20 in. (2850 mm) (AN183745) (2 Used)
33-Return Line, Use Yellow II Return Tie Band (N238907)
34-Return Line, Right-Hand SCV II on Tractor
35-Pressure Line, Use Yellow II Pressure Tie Band (N238906)
36-Pressure Line, Left-Hand SCV II on Tractor
37-Hose, 1/2 x 36 in. (914 mm) (AN231738)
|
