OMN300745: 2510H High Speed Low Disturbance Applicator(N02510HX002001- ), Block File: OUO6061_0002905_19

Tightening Hardware

Check tightness of ALL BOLTS, U-BOLTS and CAP SCREWS after first 10-15 hours of operation and again at end of first week (50 hours) of operation. Tighten all bolts to torques specified in Service section unless otherwise noted.

Verify following torque specifications.

OUO6061,0002905 -19-02JAN08-1/4

Specification

Rockshaft Cap Screws -Torque

542 N·m

(400 lb-ft)

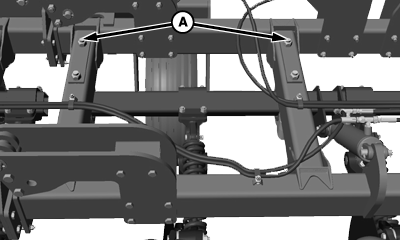

A-Rockshaft Cap Screws

OUO6061,0002905 -19-02JAN08-2/4

Specification

Wing-Fold Plate Cap Screws -Torque

339 N·m

(250 lb-ft)

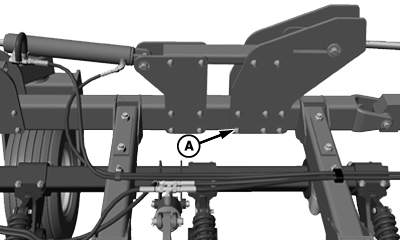

A-Wing-Fold Plate Cap Screws

OUO6061,0002905 -19-02JAN08-3/4

Specification

Wing Stabilizer Wheel Arm Cap Screw -Torque

813 N·m

(600 lb-ft)

Check tightness of hardware periodically.

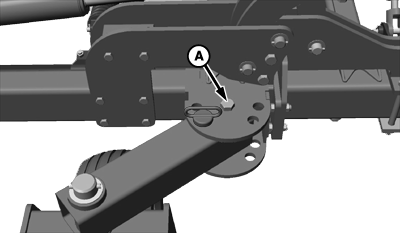

A-Wing Stabilizer Wheel Arm Cap Screw

OUO6061,0002905 -19-02JAN08-4/4
