Detaching Machine From Tractor

causym CAUTION: To help prevent severe injury or death to you or someone else:

Keep all persons away from machine when raising and lowering wings.

Always locate machine on level ground when raising and lowering wings.

Never raise or lower wings when moving.

1. FOLD WINGS- Block machine wheels. With transmission in "PARK", start tractor engine and pull SCV I control lever (A) rearward to raise wings to stops.


A-SCV I Control Lever

N39547

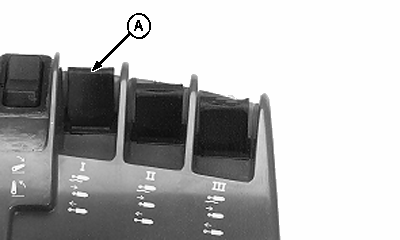

N49720

John Deere 8000 Series Tractor

OUO6061,000290D -19-04APR08-1/8

2. RAISE HIGH SPEED FERTILIZER OPENERS- Pull SCV II control lever (A) rearward to fully raise openers.


A-SCV II Control Lever

N48108

John Deere 8000/9000 Series Tractor

N58103

John Deere 8020/9020 Series Tractors

OUO6061,000290D -19-04APR08-2/8

3. CLOSE transport lock-up valve (A) 90° from valve.


A-Transport Lock-Up Valve

N78546

Transport Lock-Up Valve-Closed Position

OUO6061,000290D -19-04APR08-3/8

causym CAUTION: When unhitching machine it can become unstable causing serious injury or death to you or others. To avoid injury, lower parking stands to ground and retain with pins BEFORE detaching.

4. Lower parking stands to ground and retain with pins (A).


A-Pin

N80386

Parking Stand In Storage Position

OUO6061,000290D -19-04APR08-4/8

5. Disconnect warning light plug from tractor outlet socket (A), and attach to machine storage receptacle.


A-Tractor Outlet Socket

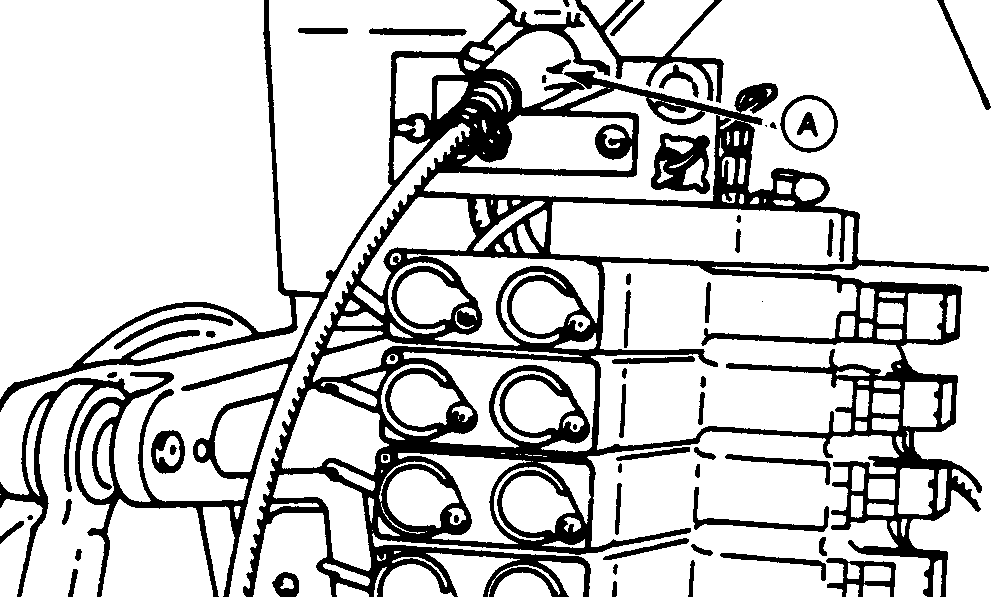

N48110

John Deere 8000/9000 Series Tractor

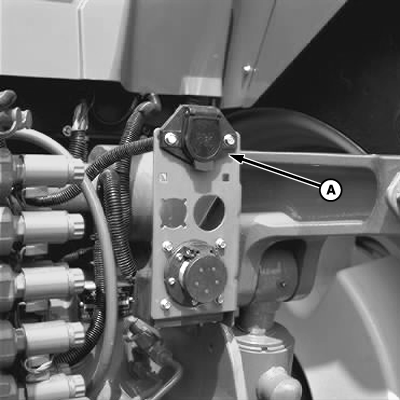

N58116

John Deere 8020/9020 Series Tractor

OUO6061,000290D -19-04APR08-5/8

causym CAUTION: Serious personal injury can result if you attempt to disconnect hydraulic hoses under pressure. Place SCV II tractor control lever in FLOAT position before disconnecting hoses to prevent a sudden accident.

IF WINGS ARE FOLDED: Before disconnecting wing-folding cylinder hydraulic hoses, relieve pressure from wing-fold hydraulic system and return SCV lever to neutral position.

6. Disconnect wing-fold and opener hoses from hydraulic couplers.

X9811

OUO6061,000290D -19-04APR08-6/8

7. Raise both latch levers (A) with machine raised.

8. Lower machine to ground. Continue lowering quick coupler until hooks clear implement hitch pins.

9. Verify machine and parking stands are flat on ground.

10. Carefully drive tractor away from machine.


A-Latch Lever

RXA0078885

Coupler Latch Handle

OUO6061,000290D -19-04APR08-7/8

11. Place hose end fittings and wire harness connector in proper storage slots.

N78545

Hose Storage Slot

OUO6061,000290D -19-04APR08-8/8
