Checking Wheel Bolts And Bearings
Check tightness of all wheel bolts (A) and wheel pivot bearings during first week of operation and periodically after that.
Tighten all wheel bolts to specification.
Specification
|
(A) Front Stabilizer Wheel Bolts
-Torque
|
176 N·m
|
(130 lb-ft)
|
Specification
|
(B) Front Stabilizer Yoke Arm Cap Screw
-Torque
|
441 N·m
|
(325 lb-ft)
|
Specification
|
(C) Rear Caster Wheel Bolts
-Torque
|
352 N·m
|
(260 lb-ft)
|
Specification
|
(D) Rear Caster Wheel Yoke Arm Cap Screws
-Torque
|
678 N·m
|
(500 lb-ft)
|

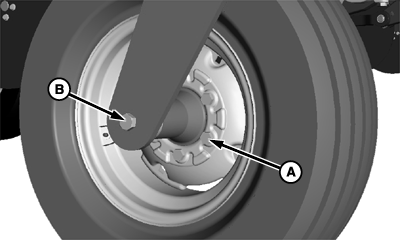

A-Front Stabilizer Wheel Bolts
B-Front Stabilizer Yoke Arm Cap Screw

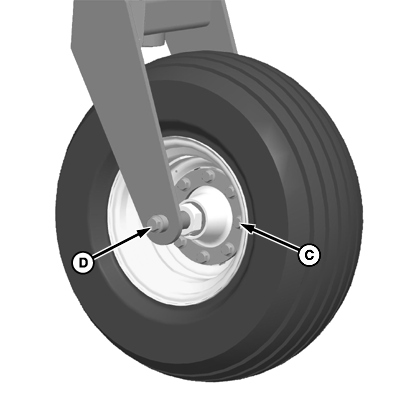

C-Rear Caster Wheel Bolts
D-Rear Caster Wheel Yoke Arm Cap Screws
|
