Servicing Rear Caster Wheel Hub

1. Start tractor, raise and block machine and tire.

OUO6061,0002914 -19-07APR08-1/2

2. Remove cap screw (A) and spacer. Repeat process on other side.

3. Remove wheel bolts and remove hub. Retain wheel bolts.

IMPORTANT: Hub bearings are factory sealed.

4. See your John Deere dealer for hub service.

5. Tighten hub assembly to rim using existing bolts to specification.

Specification

Hub Bolts -Torque 352 N·m (260 lb-ft)

6. Reinstall tire between yoke arms using existing hardware.

7. Tighten cap screws to specification.

Specification

Tire Mounting Cap Screw -Torque 678 N·m (500 lb-ft)

8. Inflate tire to specification.

Specification

Tire 12.5L x 15FI Load Range F -Pressure
6.2 bar
620 kPa (90 psi.)

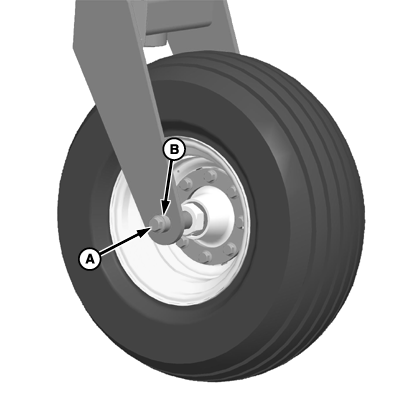

N79482


A-Cap Screw (2 Used)
B-Spacer, (2 Used)
