Adjust Opener Depth

Raise gauge wheel for deeper application. Lower gauge wheel for shallower application.

NOTE: Set openers deeper in heavy field residue or when disk openers are worn to achieve desired fertilizer placement.

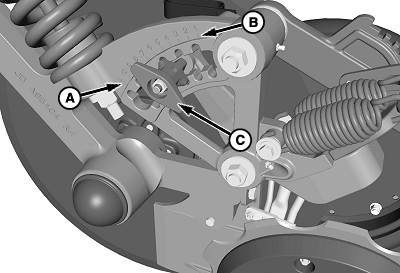

Fertilizer depth is adjustable from 90 mm to 140 mm (3.5 in. to 5.5 in.) using 1 shallowest (B), to 11 deepest (A) settings (D). Each adjustment slot changes fertilizer depth in 5 mm (0.2 in.) increments.

To Adjust:

Pull handle (C) out and position in slots. For small adjustments, alternately move the top or bottom of handle one slot at a time.

A-Deep
B-Shallow
C-Handle
D-Settings
