Replace Gauge Wheel Arm

causym CAUTION: Disks are sharp. Use caution and wear protective clothing to avoid injury.

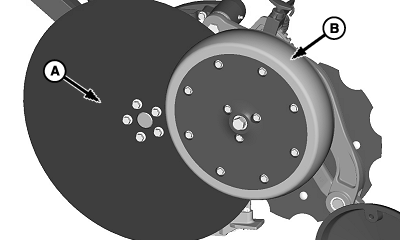

1. Remove disk (A) and gauge wheel (B).

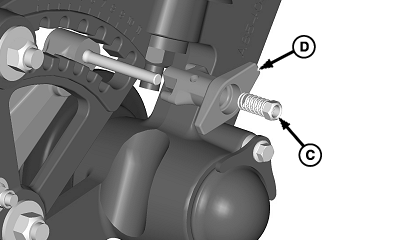

2. Remove nut (C), spring, and handle (D).

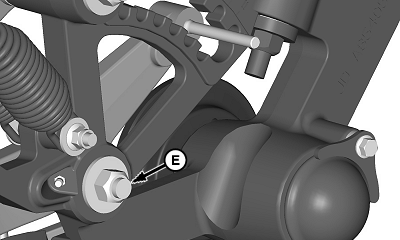

3. Remove cap screw (E), washer, and arm.

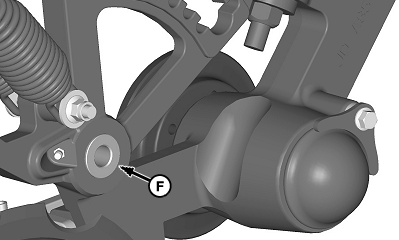

4. Remove and inspect spacer (F). Replace if damaged.

5. Assemble in reverse order and tighten cap screws to specification.

Specification

Gauge Arm Cap Screw -Torque 237 N·m (175 lb-ft)
Disk Cap Screws -Torque 73 N·m (54 lb-ft)
Gauge Wheel Cap Screw -Torque 217 N·m (160 lb-ft)


A-Disk
B-Gauge Wheel
C-Nut
D-Handle
E-Cap Screw
F-Spacer

N79967
N79968
N79969
N79970

OUO6074,000108A -19-12FEB08-1/1
