Adjust Closing Wheel Down Force

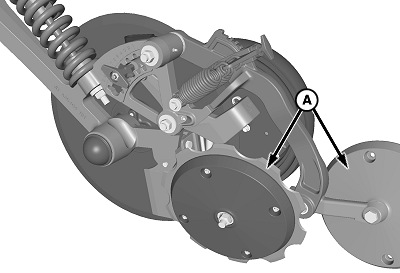

When properly adjusted, closing wheels (A) pinch the furrow closed.

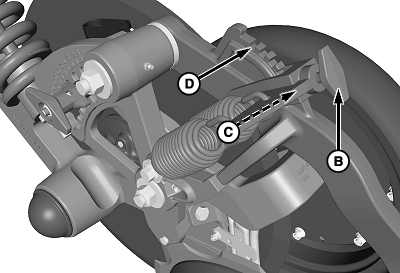

Place closing wheel adjustment spring (B) in one-of-five positions (C-D), which best suits the soil type and closes furrow without compacting soil.

HEAVY DOWN FORCE (C)-Heavy or tight soil.

LIGHT DOWN FORCE (D)-Light, loose, or sandy soil.


A-Closing Wheel
B-Adjusting Spring
C-Heavy Down Force
D-Light Down Force

N78822
N78816

OUO6435,00023B1 -19-29JAN08-1/1
