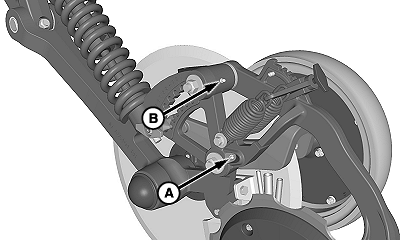

At set-up and once a year, apply ten pumps of grease to each opener depth gauge arm (A) and press wheel pivot (B). Cycle depth gauge arm fully in each direction.
A-Depth Gauge Arm B-Press Wheel Pivot
OUO6435,00023B3 -19-13FEB08-1/1
