Replace Opener Disk

CAUTION: Disks are sharp. Use caution and wear protective clothing to avoid injury.

NOTE: Diameter of a new disk opener (G) is 579 mm (22-3/4 in.) Replace disk opener when diameter is less than 529 mm (20- 3/4 in.) or if uneven fertilizer depth occurs.

Clean soil from parts prior to removal.

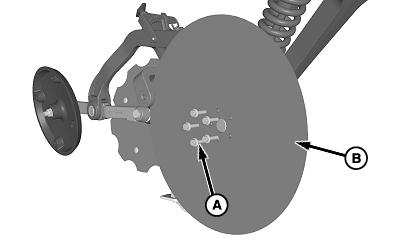

1. Remove cap screws (A) and disk (B) from hub.

2. Install new disk opener with beveled side towards hub. Install cap screws and tighten to specification.

Specification

A-Cap Screw (5 used)
B-Disk

OUO6435,00023B7 -19-12FEB08-1/1
