Replace Scraper or Product Tubes

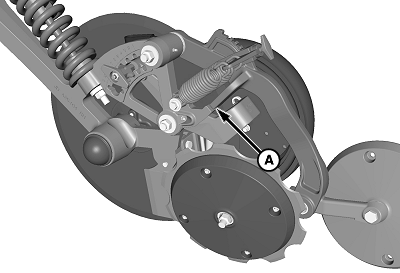

CAUTION: Avoid injury. Stay clear of pinch point (A).

NOTE: Clean soil from parts prior to removal.

1. Raise closing wheels to the highest position for clearance.

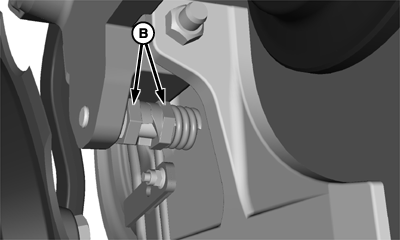

2. Rotate cams (B) to remove spring tension.

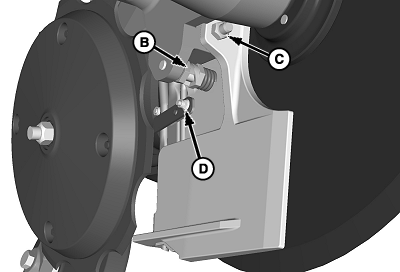

3. Remove pivot cap screw (C) and scraper.

4. Remove cap screw (D) and product tubes.

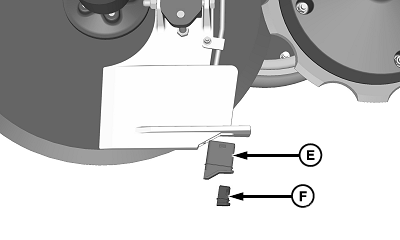

NOTE: Some configurations use a double plug (E) or single plug (F) to reduce soil buildup behind scraper.

5. If Equipped: Remove rubber plug (E) or (F) and install in new scraper.

6. Install product tubes on new scraper.

7. Install scraper and turn cams to compress spring.

A-Pinch Point
B-Cams
C-Cap Screw
D-Cap Screw
E-Double Plug
F-Single Plug

OUO6435,00023B8 -19-15FEB08-1/1
