Positioning Tractor Drawbar

1. TWO-WHEEL DRIVE TRACTORS:

Set tractor drawbar (A) in short position.

2. FOUR-WHEEL DRIVE AND TRACKED TRACTORS:

For Field Position: leave one hole clearance on each drawbar side. Pin drawbar tightly for transport.

For Transport Position: move pins in next to drawbar for fixed, center position.

3. Be sure clevis assembly (if equipped) is installed on top of drawbar. Tighten clevis hardware to specification.

Specification

Clevis Hardware -Torque 407 N·m (300 lb-ft)

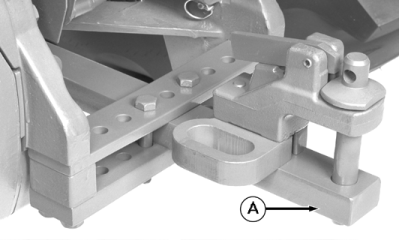

A-Tractor Drawbar

RW55308

John Deere 8000/9000 Series Tractors

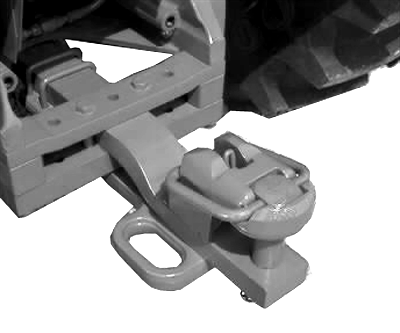

N58122
