Replace Wheel Retraction Switch 5-Section Machines ONLY

1. Disconnect wiring harness.

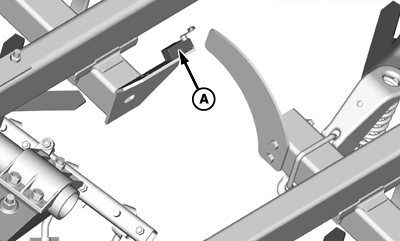

2. Remove hardware and switch (A). Retain hardware.

N72793

KB78086,0000367 -19-13JUL07-1/3

N76836

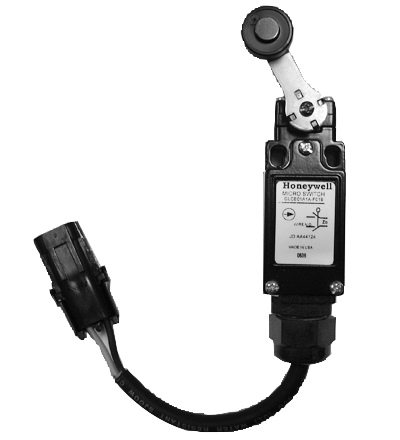

Lever Off-Center
N76838

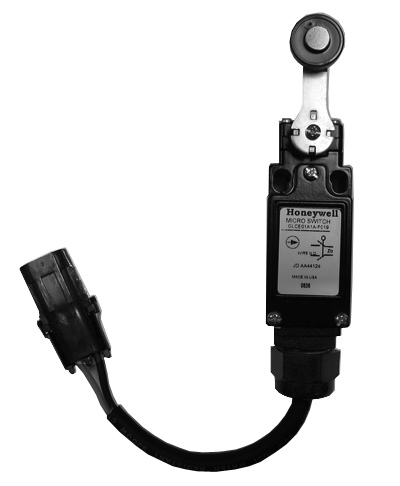

Lever In-Line

NOTE: Switch is shipped with lever positioned off-center. Lever must be IN-LINE with switch.

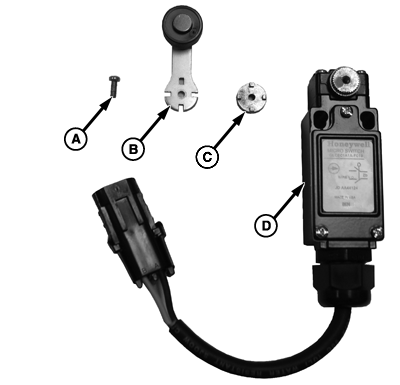

3. Remove parts (A-C) from switch (D).


A-Screw
B-Lever
C-Hub
D-Switch

N76837

KB78086,0000367 -19-13JUL07-2/3

4. Reassemble parts with lever IN-LINE (A) with switch. Tighten screw.

5. Install new switch using existing hardware.

6. Attach wiring harness.

N76838

A
