Attaching Machine To-John Deere 8000/9000, 8020/9020 and 8030/9030 Series Tractors

1. Back tractor into position and attach hitch to drawbar with aid of jack (A). Be sure hitch pin is retained with locking lever.

IMPORTANT: Avoid damage to jack. Make sure handle is located on top of jack when in field position.

2. Remove L-pin.


A-Jack

N72985

KB78086,00003CC -19-11SEP07-1/3

3. Rotate jack (A) to field position with handle located on top of jack.

4. Replace L-pin.


A-Jack

N72983

Field Position

KB78086,00003CC -19-11SEP07-2/3

5. Turn tractor engine OFF.

IMPORTANT: Be sure to correctly connect depth control hoses to couplers. If hose connections are reversed, machine will not respond.

NOTE: Connections for 8030/9030 series tractor are similar to connections shown.

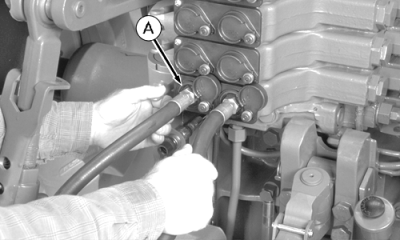

6. Push depth control hoses (A) into SCV I couplers (B). Be sure oil flow agrees with symbols on hose identification tag. EXTEND hose ALWAYS goes in LEFT coupler.

7. Plug wing-fold hoses into SCV II couplers (C).

8. Plug hydraulic gang hoses into SCV III couplers (D).

9. Plug optional rolling basket hose into SCV IV coupler (E).


A-Depth Control Hoses
B-SCV I Couplers
C-SCV II Couplers
D-SCV III Couplers
E-SCV IV Couplers

N47785
N77676

KB78086,00003CC -19-11SEP07-3/3
