Adjusting Optional Rolling Baskets

There are three different adjustments for rolling baskets:

1. Engaged and Disengaged position
2. Height
3. Down Pressure

Engaged and Disengaged Position

This adjustment allows rolling baskets to be raised or lowered for transport or field use.

Use SCV IV to lower or raise baskets.

KB78086,00003CF -19-21SEP07-1/3

NOTE: Seven turns equals 32 mm (1-1/4 in.) adjustment.

Height

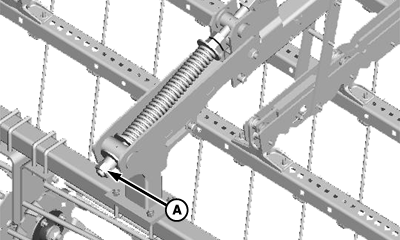

To adjust rolling basket height turn nut (A) as needed.

A-Nut

KB78086,00003CF -19-21SEP07-2/3

IMPORTANT: Rolling baskets are preset and should ONLY be adjusted +/- 25 mm (1 in.) from original setting.

NOTE: Seven turns equals 25 mm (1 in.) adjustment.

Down Pressure

Measure spring lengths to verify settings.

• Highest setting is 385 mm (15.15 in.)
• Factory setting is 410 mm (16.15 in.)
• Lowest setting is 435 mm (17.15 in.)

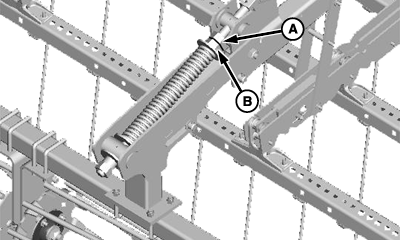

To adjust rolling basket down force loosen jam nut (A) and turn nut (B) as needed.

Tighten jam nut when finished.

A-Jam Nut
B-Nut

KB78086,00003CF -19-21SEP07-3/3
