To Operate TOUCHSET Depth Control

1. Turn single point depth control crank clockwise until depth stop bracket is against rear single point depth control bracket. This ensures that single point depth control does NOT interfere with TOUCHSET Depth Control operation.

2. To raise implement to upper set point, pull SCV I switch (A) back to "DETENT" and release.

3. To lower implement to lower set point, push SCV I switch (A) forward to "DETENT" and release.

4. To raise machine to full transport or to rephase depth control hydraulic cylinders, hold SCV I switch (A) in rearward "detent" position.

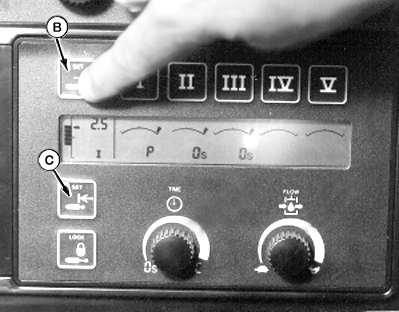

5. To readjust set points, raise or lower implement by holding control midrange between center and detent until implement is at desired position then press upper (B) or lower (C) set button.


A-SCV I-Control Switch
B-Upper Set Button
C-Lower Set Button
