Engaging Hydraulic Cylinder Transport Lock-Up Valve
 CAUTION:
Hydraulic lines are under pressure. Escaping fluid under pressure can penetrate skin causing serious injury.
CAUTION:
Failure to close hydraulic cylinder lock-up valve could cause machine to unfold unexpectedly during transport causing serious injury or death to you or others.
CAUTION:
DO NOT operate SCV I in CONTINUOUS. Operating SCV I in CONTINUOUS may cause machine to unfold unexpectedly during transport causing serious injury or death to you or others.
For field operation, OPEN hydraulic cylinder transport lock-up valve (A).
CLOSE hydraulic cylinder transport lock-up valve (B) during transport.

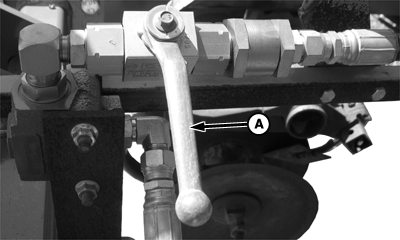

A-Lock-up Valve OPEN Position
B-Lock-up Valve CLOSED Position
|
