Identifying Disk Blades Eligible for Warranty

Loose gang bolts and operating in rock or stump conditions are most common causes of blade failures. These types of blade failure are NOT warrantable. Check gang bolts periodically, and tighten. (See TIGHTENING GANG BOLT in this section.)

IMPORTANT: John Deere does not recommend and will not warranty any disk blades (carbon or boron) after they have been through a rolling process.

The following illustrations show types of disk blade failures that are eligible for warranty replacement.

NXL,635,P41A -19-31JAN06-1/3

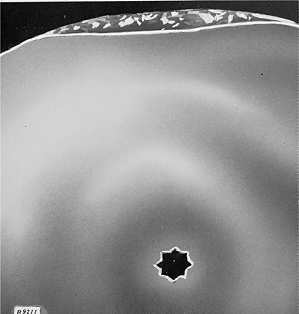

Lamination or split blade caused by defective material.

NXL,635,P41A -19-31JAN06-2/3

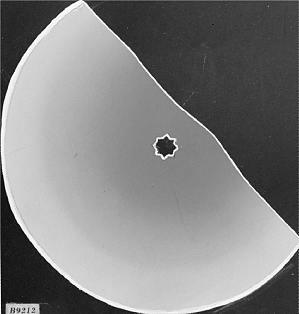

Straight, directional break caused by defective material.

NXL,635,P41A -19-31JAN06-3/3
