Replacing Worn PERMA-LOC Sweeps

IMPORTANT: Debris MUST be removed from sweep mounting area on shank, and spring condition MUST be inspected to prevent loss of sweep.

Before installing new sweep inspect spring to determine if it has taken a permanent set. If spring appears defective measure distance shown (A). If distance measures less than specification replace spring.

Specification

Spring -Height 21 mm (7/8 in.)

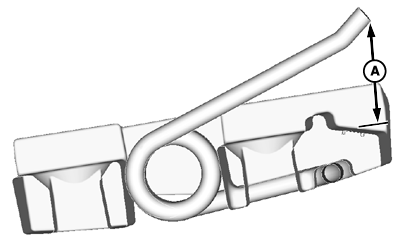

N63567


A-Spring Height

OUO6050,00004E4 -19-18JUL05-1/1
