A-Safety Chain
B-Safety Signs

C-Jack Stand
D-SMV Emblem

E-Warning Lights

F-Reflectors

NOTE: Depending on harrow types determines location of warning lights and reflectors.

In addition to safety features described here, other components and systems, safety signs on machine, safety messages in Operator's Manual and elsewhere, as well as care and concern of capable operator, contribute to safety of operators and others nearby.

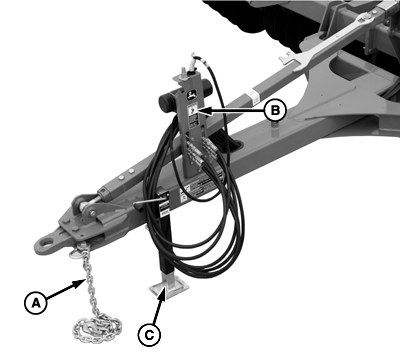

A-Safety Chain will help control machine should it accidentally separate from tractor drawbar.

B-Safety Signs warn against hazards resulting in injury or death.

C-Jack Stand used for ease in attaching and detaching from tractor.

D-SMV Emblem identifies slow-moving equipment and alerts traffic approaching from rear.

OUO6061,00022B3 -19-17JAN07-1/2

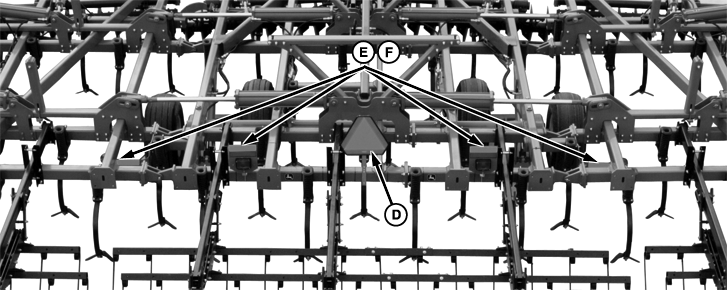

E And F-WARNING LIGHTS AND REFLECTORS alert other drivers to presence and width of slow-moving machinery on roadways and signal turns.

OUO6061,00022B3 -19-17JAN07-2/2
