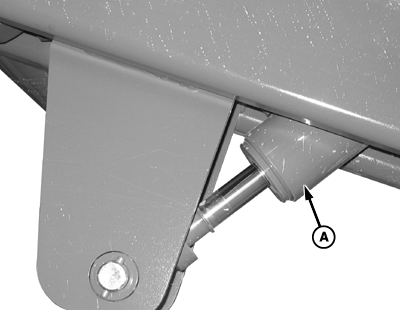

Installing Depth Control Cylinders1. Attach depth control cylinders with base end up/rod end down, using pins and spring pins.2. Attach hydraulic hoses to same cylinder ports from where they were removed. Retain hoses with tie bands.
|
|
OUO6061,00022E8 -19-22MAY06-1/1 |
