Adjusting Wing Stabilizer Wheels-If Equipped

NOTE: To correct diving of front wing disk gangs, first adjust wing frames level with main frame at proper operating speed. (See Operating Machine section.)

2. Find desired working depth of disk gangs and set depth control.

3. Remove adjustment pins, allow gauge wheel to rest on ground, and re-insert pins into nearest holes.

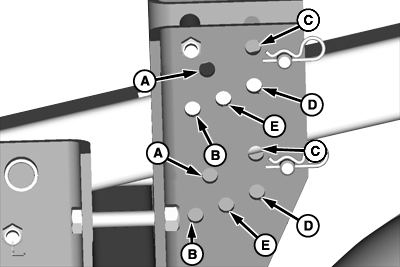

NOTE: Setting (A) is for maximum depth and (B) is for minimum depth. Use settings (C-E) to change depth at 25 mm (1 in.) increments.

A-Top Setting (Maximum Depth)
B-Bottom Setting (Minimum Depth)
C-E-Intermediate Settings, 25 mm (1 in.) Depth Intervals

OUO6061,0002349 -19-11JUL06-1/1
