Tightening C-Springs

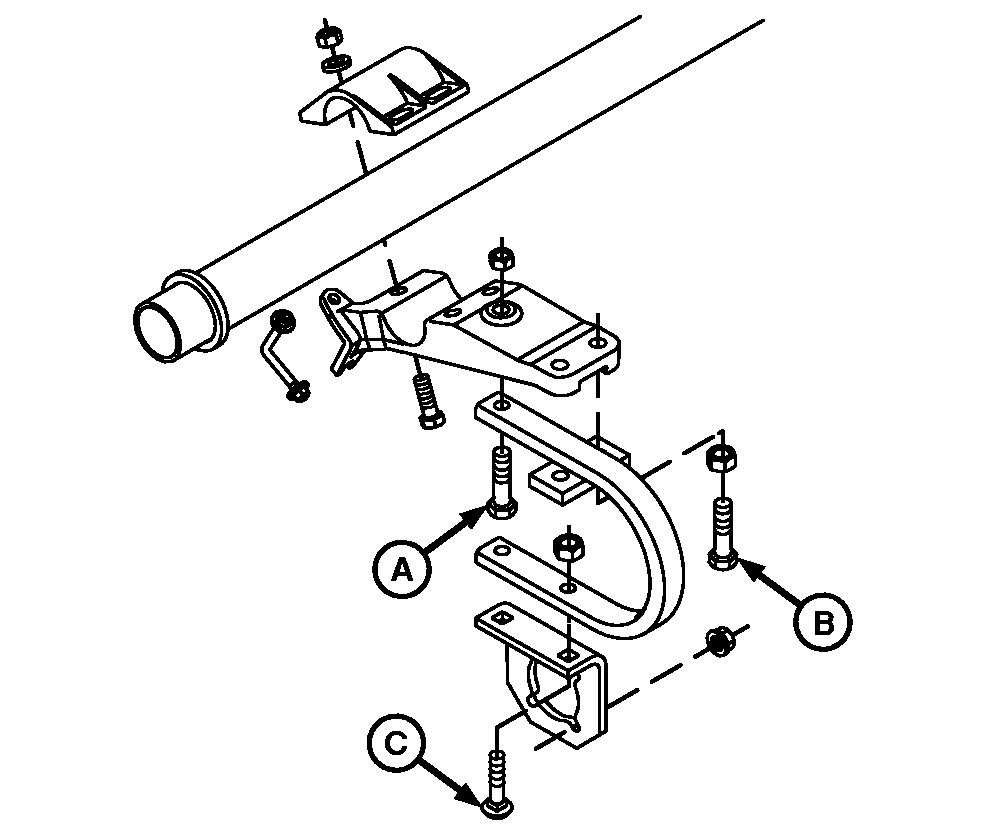

Tighten nuts on cap screws (A), (B), and (C) uniformly. Rotate tightening sequence among cap screws so no one cap screw is completely tightened on first attempt.


A-3/4 x 3 in. Cap Screw
with Lock Nut
B-3/4 x 3-1/2 in. Cap Screw
with Lock Nut (2 used)
C-3/4 x 2-3/4 in. Cap Screw
with Lock Nut (2 used)

N72986
N72987

OUO6061,0002358 -19-19MAR08-1/1
