Attaching Machine To-John Deere 7000 Series Tractors

1. Back tractor into position and attach hitch link to drawbar. Be sure hitch pin is retained with spring strap or hex nut.

2. Plug wing-fold hoses into SCV II couplers (A).

3. Plug depth control hoses into SCV I couplers (B).

4. Plug hydraulic gang control hoses into SCV III couplers (C).


A-Wing-Fold Hoses
B-Depth Control Hoses
C-SCV Coupler

N42181YD

OUO6061,000255B -19-04SEP07-1/2

IMPORTANT: Be sure jack handle is located on top when transporting machine, or damage to jack can occur.

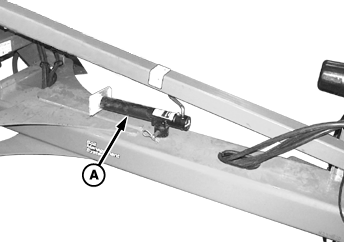

5. Move jack (A) to transport position.


A-Jack

N72983

OUO6061,000255B -19-04SEP07-2/2
