Adjusting 3 and 5-Bar Coil Tine Harrows

causym CAUTION: Sharp tines can puncture your foot or cause other personal injuries. Wear protective clothing, eye protection and gloves when working around harrow.

1. COIL TINE ANGLE ADJUSTMENT- Controls harrow aggressiveness and residue flow capability. Coil Tine angle should be adjusted per field conditions for best combined performance of residue flow and field leveling.

The coil tine has a range of six adjustments from least aggressive to most aggressive.

NOTE: For better residue flow use less aggressive settings.

2. Least Aggressive (A or B)- When L-pin is installed in front hole (A), harrow is in the least aggressive position.

Aggressive (C or D)- When L-pin is installed in top hole, harrow is in the middle aggressive position. This is the most aggressive setting for 3-bar harrows.

Most Aggressive (F)- When pin is installed in rear hole, harrow is in the most aggressive position.

Adjust tine angle by raising machine and move pin from shipping position (G) to desired position. Initial recommended tine angle is aggressive (C).

N77688

3-Bar Coil Tine Harrow Adjustments

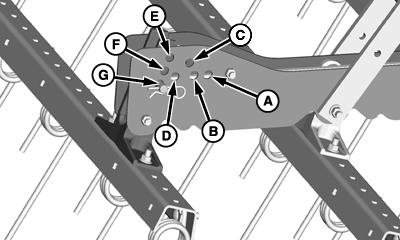

N73334

5-Bar Coil Tine Harrow Adjustments


A-Least Aggressive
B-Second Aggressive
C-Third Aggressive
D-Fourth Aggressive
E-Fifth Aggressive
F-Sixth Aggressive
G-Shipping Position

OUO6061,000280A -19-12SEP07-1/2

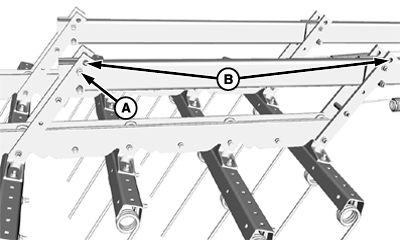

3. Over time coil tines will wear and harrows will have to be lowered to allow for better residue flow and soil profile. To reset harrows, remove cap screw (A) and lower harrows. Reinstall cap screw in wear hole (B).


A-Cap Screw
B-Wear Hole

N73885

OUO6061,000280A -19-12SEP07-2/2
