Depth Control and Disk Gang Rockshaft Bearing Inspection

NOTE: There are two rockshaft types, depth control and disk gangs. Both use the same bearing type just different sizes.

IMPORTANT: Replace bearings worn more than 4.8 mm (3/16 in.) or after 500 hours.

To inspect wheel arm bearings, do following:

1. Measure gap between rockshaft (A) and bearing inserts (B).

2. If gap is greater than 4.8 mm (3/16 in.), replace bearing inserts or after 500 hours. (See DEPTH CONTROL BEARING REPLACEMENT or DISK GANG BEARING REPLACMENT in this section.)


A-Rockshaft
B-Bearing Inserts

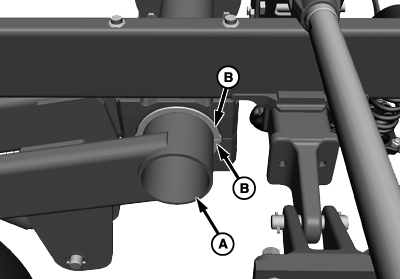

N79681

Main Frame Depth Control Bearings

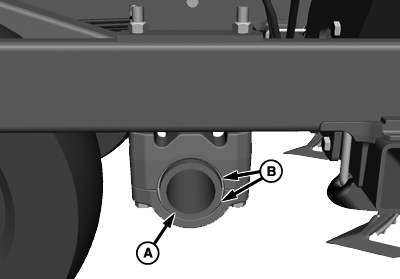

N79683

Wing Depth Control Bearings

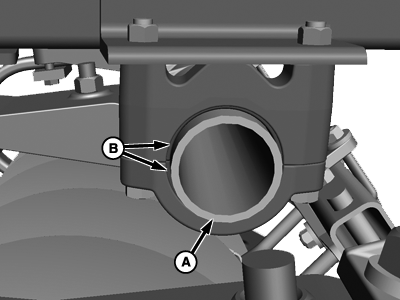

N79682

Disk Gang Bearings

OUO6061,0002930 -19-18JAN08-1/1
