Replace Hood Grille Work Light Bulb

1.
   N85242-UN-05JUN09

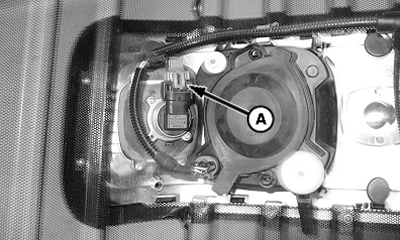

   Left-Hand Side Shown

   A - Wiring Harness Plug

   Raise hood.

---




2. Disconnect wiring harness plug (A).

3.
   N85243-UN-05JUN09

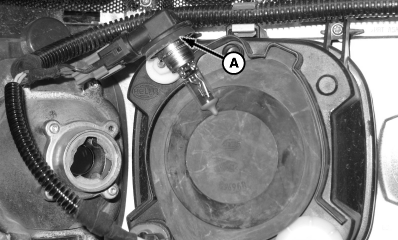

   A - Light Bulb

   Rotate light bulb (A) counterclockwise approximately 1/4 turn and remove.

---




4. Install light bulb in reverse order of removal.
