Replace High and Low Beam Light Bulbs

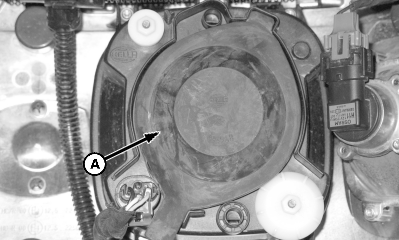

  1. N85201
    N85201-UN-03JUN09

    A - Boot

    Remove and retain rubber boot (A).

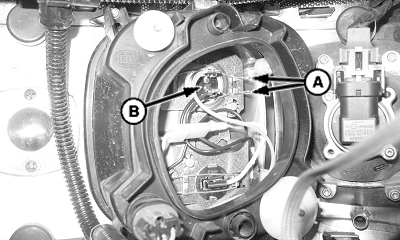

  2. N85202
    N85202-UN-03JUN09

    A - Retaining Spring

    B - Light Bulb

    Release retaining spring (A) and light bulb (B).

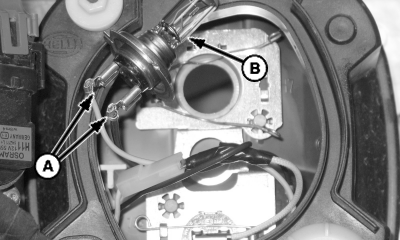

  3. N85246
    N85246-UN-05JUN09

    A - Wires

    B - Light Bulb

    Disconnect wire connectors (A) from light bulb (B).


  4. Install new light bulb.

  5. Reassemble in reverse order of removal.

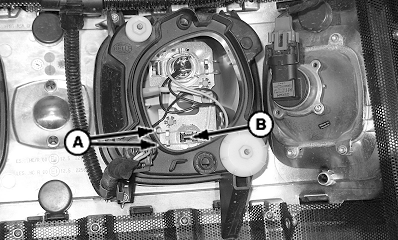

  6. N85204
    N85204-UN-03JUN09

    A - Retaining Spring

    B - Light Bulb

    Remove retaining spring (A) and light bulb (B).

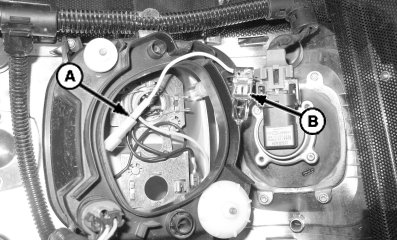

  7. N85205
    N85205-UN-03JUN09

    A - Wires

    B - Light Bulb

    Disconnect wires at point (A) to remove light bulb (B).


  8. Install new light bulb and connect wires.

  9. Reassemble in reverse order of removal.

  10. Reinstall rubber boot.
