Replace Extremity Front Warning Light Bulb

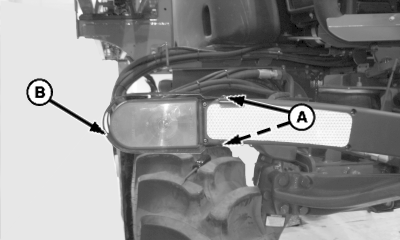

  1. N85225
    N85225-UN-05JUN09

    A - Screws (2 Used)

    B - Lens Guard

    Remove and retain screws (A) to remove lens guard (B).

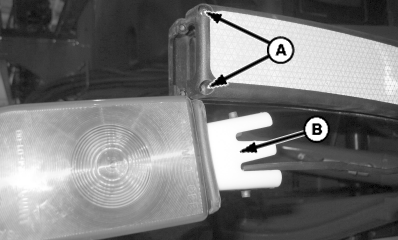

  2. N85226
    N85226-UN-04JUN09

    A - Screws

    B - Light Base

    Remove and retain screws (A) necessary on light arm to remove light bulb base (B).


  3. Rotate light bulb base (B) approximately 1/4 turn counterclockwise to remove from lens.

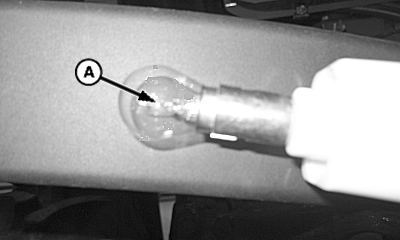

  4. N85227
    N85227-UN-04JUN09

    A - Light Bulb

    Replace light bulb (A).


  5. Reassemble in reverse order of removal.

OUO6041,00002FB-19-20090709
