Replace Roof Flood Light Halogen Bulb

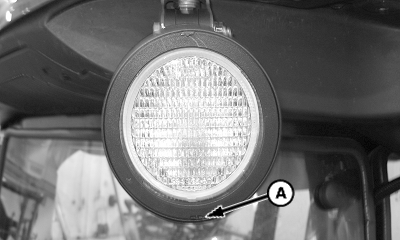

  1. N85248
    N85248-UN-05JUN09

    A - Cover

    Pry cover off at point (A).

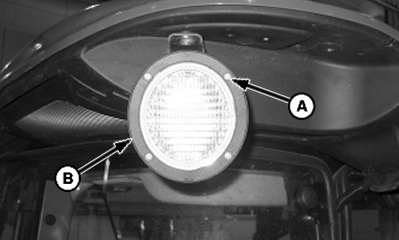

  2. N85249
    N85249-UN-05JUN09

    A - Screws (4 Used)

    B - Bezel

    Remove and retain screws (A) and light bezel (B).

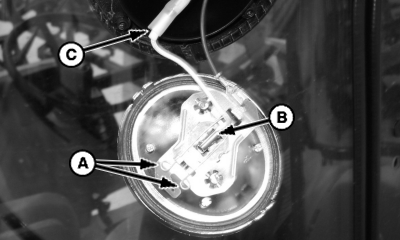

  3. N85250
    N85250-UN-05JUN09

    A - Retaining Spring

    B - Light Bulb

    C - Wire

    Release retaining spring (A) and light bulb (B).


  4. Disconnect wires (C).

  5. Install new light bulb and connect wires.

  6. Reassemble previously removed parts in reverse order
