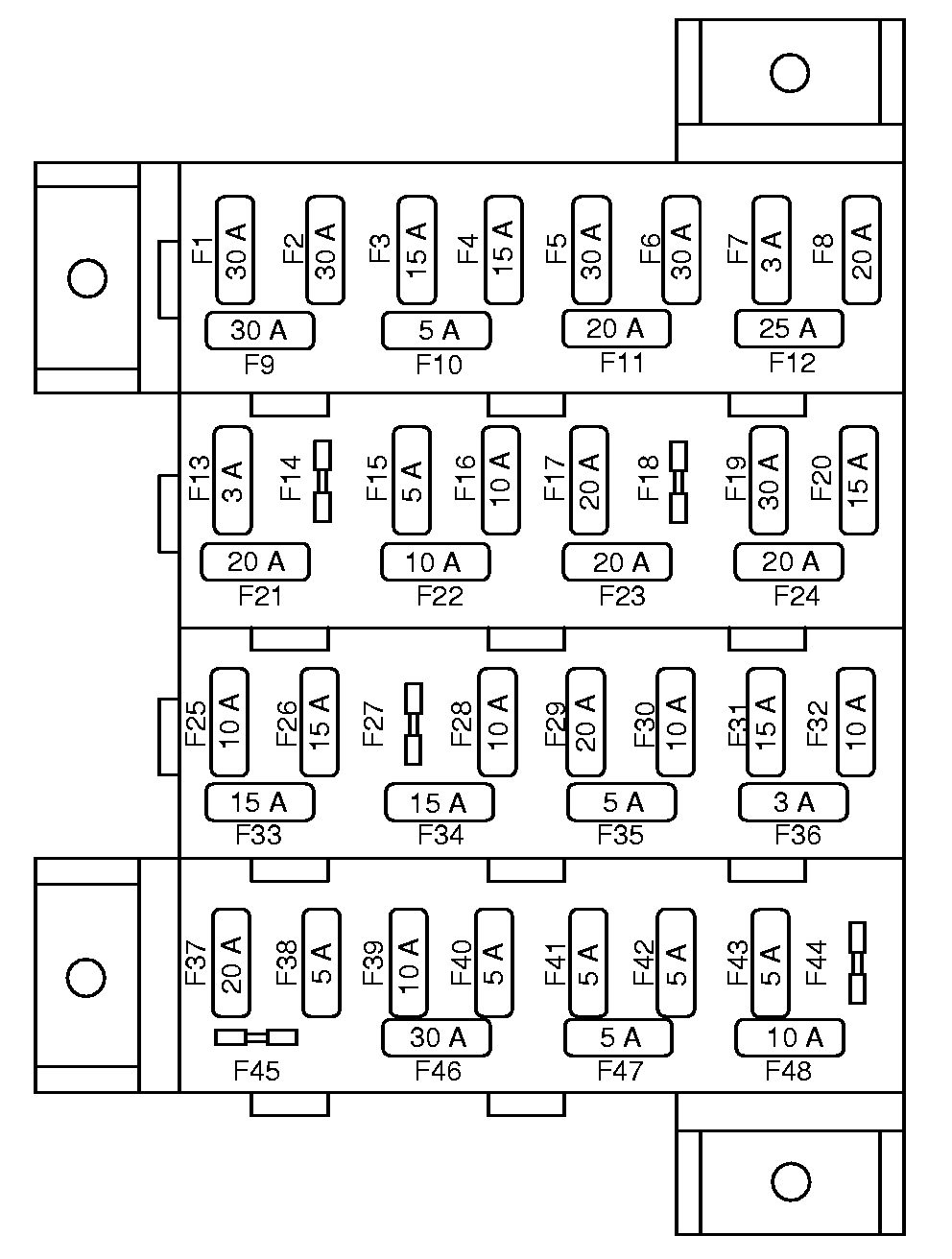

Load Center Fuses

N85253-UN-09JUN09

F1 - Key Switch (30 amp)

F2 - Accessories (30 amp)

F3 - Lights and Horn (15 amp)

F4 - Road High/Low Lights (15 amp)

F5 - Platform Lights (30 amp)

F6 - Cab and Fill Station Lights (30 amp)

F7 - BHC Memory (unswitched) (3 amp)

F8 - Hazard and Brake Lights (20 amp)

F9 - ELX2 (30 amp)

F10 - ECU ELX2 Power (5 amp)

F11 - Windshield Wiper (20 amp)

F12 - BHC Bat (25 amp)

F13 - Armrest and Hydro Handle (3 amp)

F14 - Not Used

F15 - Wheel Speed Sensor (5 amp)

F16 - Radio (10 amp)

F17 - Auxiliary Plug/Ignition (20 amp)

F18 - Not Used

F19 - Blowers (30 amp)

F20 - Seat (15 amp)

F21 - Ignition Switch (20 amp)

F22 - Universal Monitor (10 amp)

F23 - Hood Lights (20 amp)

F24 - Air Conditioning (20 amp)

F25 - Turn Signal Switch (10 amp)

F26 - Diff Lock/Traction Control and Shift (15 amp)

F27 - Not Used

F28 - Park Brake (10 amp)

F29 - Auxiliary Plug/Battery (20 amp)

F30 - Radio Memory and Dome Light (10 amp)

F31 - CCU Memory (15 amp)

F32 - Lighter (10 amp)

F33 - LH Solution Valve (15 amp)

F34 - RH Solution Valve (15 amp)

F35 - SSU Memory (unswitched) (5 amp)

F36 - CAN1 (3 amp)

F37 - CCU Driver (switched) (20 amp)

F38 - CCU Logic (switched) (5 amp)

F39 - SSU Driver (switched) (10 amp)

F40 - SSU Logic (switched) (5 amp)

F41 - Remote Load Switch and Flowmeter (5 amp)

F42 - Spray Switches and Pump Switches (5 amp)

F43 - Cab Blower and Wiper (5 amp)

F44 - Not Used

F45 - Not Used

F46 - ELX1 (30 amp)

F47 - Agitation (5 amp)

F48 - Foam Marker (10 amp)
