Fuses and Relays in the Engine Compartment

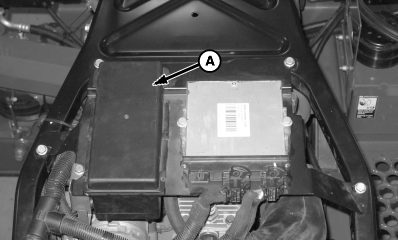

N85256-UN-08JUN09

A - Cover

IMPORTANT: To prevent unnecessary damage to the electrical system, never use a fuse with a rating higher than the one already installed.

Remove cover (A) to access fuses and relays.

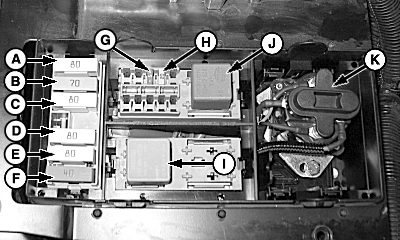

N85257-UN-08JUN09

A - F101, (80 Amp)

B - F105, Air Heater (70 Amp)

C - F106, (80 Amp)

D - F103, (80 Amp)

E - F107, (80 Amp)

F - F108, (40 Amp)

G - F102, Fuel Pump (5 Amp)

H - F104, ECU Control Unit (20 Amp)

I - K44, Fuel Pump Relay (40 Amp)

J - K46, Air Heater Relay (70 Amp)

K - K45, Start Relay
