Replace Platform Light Halogen Bulb

1. NOTE: (For important safety information regarding halogen bulbs, see Safety Rules When Replacing Halogen Bulbs in this section before performing this procedure).

   CAUTION: Avoid serious injury or death from electric shock or lamp explosion. This lamp is powered by 25,000 volts. Do not begin installation of HID-Xenon lights unless the lights are turned off, the engine is turned off, the key is removed, and appropriate eye protection is worn.

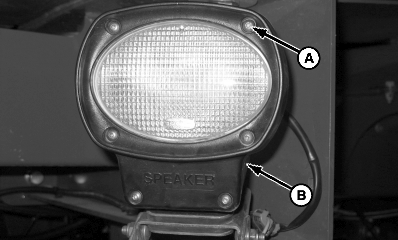

   N85275-UN-10JUN09

   A - Screws

   B - Cover

   Remove screws (A) and cover (B).

---




2.

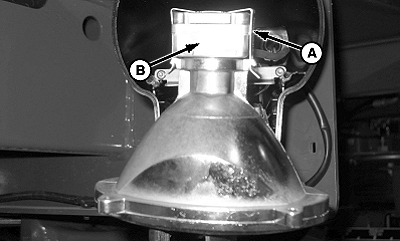

   N85276-UN-10JUN09

   A - Spring Clip

   B - Light Assembly

   Remove spring clip (A) and light assembly (B).

---




3. CAUTION: Wear gloves and safety glasses when handling bulbs. Dangerous voltage spark-over may occur and cause damage/injury at the connector. See manufacturer warning packaged with replacement bulb.

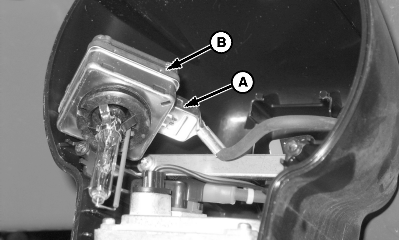

   N85277-UN-10JUN09

   Disconnect connector (A) from light assembly (B).

---




4. Install replacement bulb.

5. Reassemble in reverse order of removal.

Replace Ballast Assembly

1.

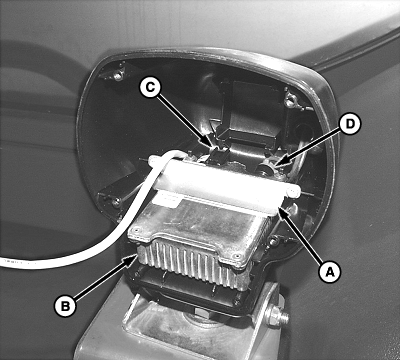

   N64397-UN-31OCT03

   A - Retainer

   B - Ballast Assembly

   C - Connector

   D - Connector

   Remove HID bulb assembly. (See Replace Hid Bulb Assembly.)

---




2. Remove screws and retainer (A).

3. Remove ballast assembly (B) from housing and disconnect connectors (C) and (D).

4. Install in reverse order.
