Check Hydrostatic and Hydraulic Oil Level—Daily

N82444-UN-11DEC08

N83822-UN-31MAR09

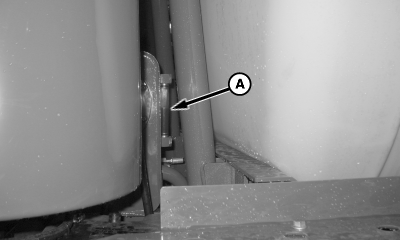

A - Sight Gauge

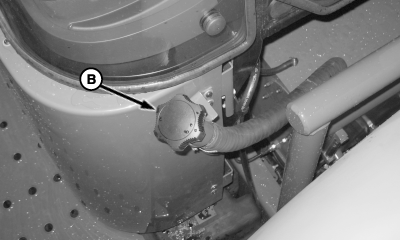

B - Filler Cap

NOTE: Place booms in boom rests and retract all hydraulic cylinders including tread adjust cylinders when checking oil level.

Hydraulic system capacity is approximately 151 L (40 gal) and reservoir capacity is 60.6 L (16 gal).

Hydraulic oil level showing should be one-half to three-quarters full in sight gauge (A). Add oil through opening at filler cap (B) if necessary. (See Fuels, Lubricants and Coolant section of machines Operators Manual for hydraulic oil specifications.)
