Check Engine Oil Level—Daily

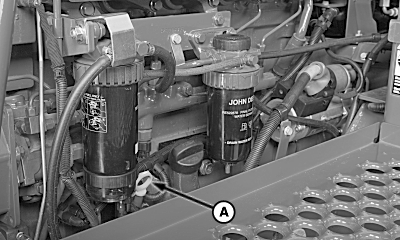

N82366-UN-27MAY09

A - Dipstick

Remove dipstick (A) and check oil level with sprayer on level ground. Oil level should be between the “ADD” and the top of the cross-hatch area on dipstick. If needed, add oil recommended in Diesel Engine Oil in the Fuels, Lubricants, And Coolants section.

Do not operate engine with oil level below the “ADD” mark on dipstick.
