Check Coolant Level—Daily

1. Raise hood.

2.

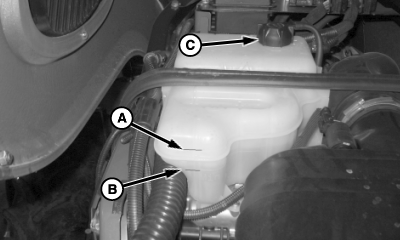

   N82443-UN-11DEC08

   Left-Hand Side

   A - Maximum Level

   B - Minimum Level

   C - Cap

   Check coolant level at expansion tank, before starting sprayer. Level should be slightly above “MIN” mark (B) and below “MAX” mark (A) when engine is cold.

---




3. If coolant level is low;

   1. Check for any signs of leakage. Repair if necessary.

   2. Tighten all hose clamps.

   3. Remove tank cap (C) and add coolant, as specified in Fuel, Lubricants and Coolant section.

   4. Lower hood.
