Lubricate Suspension Assemblies—Daily

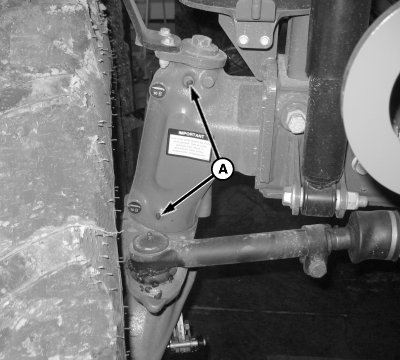

N82613-UN-26JAN09

Right Front Assembly (Narrow Body Shown)

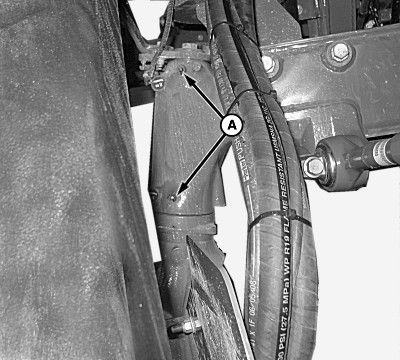

N82614-UN-26JAN09

Narrow Body Left Front Assembly (Narrow Body Shown)

A - Grease Fitting

Lubricate front suspension assemblies with John Deere SD Polyurea Grease. Use three pumps of grease at each fitting (A).

IMPORTANT: Use of other greases in the suspension system is not recommended. Use of other greases can result in premature wear of the suspension components.
