Filling Rinse Tank Using Left-Hand Rinse Fill

1. IMPORTANT: Damage to rinse tank and surrounding structure can occur when filling at a high rate if tank lid is not removed. Remove tank lid when filling at high rates to avoid damage.

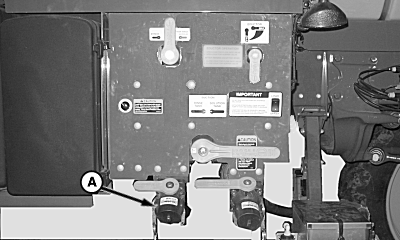

   N81319-UN-15JAN09

   A - Fill Cap

   Remove fill cap (A).

---




2. Connect fill hose and open fill valve. Fill tank to desired level.

3. After tank is filled, close valve and remove fill hose.

4. Re-attach fill cap.
