Preparing to Spray

N81775-UN-15JAN09

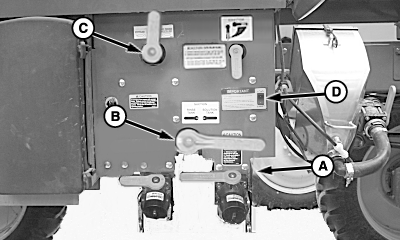

A - Quik-Fill Valve

B - Suction Valve

C - Pressure Bypass/Rinse Valve

D - Remote Solution Pump Switch

1. Verify Quik-Fill valve (A) is closed.

2. Turn suction valve (B) to “SOLUTION TANK” position.

3. Turn pressure bypass/rinse valve (C) to “SPRAY” position.

4. Verify remote pump switch (D) is in “SPRAY” position.

5.
   N81318-UN-08JUN09

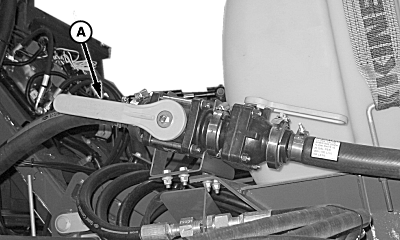

   A - Boom Shut-Off Valve

   Verify boom shut-off valve (A) is open.

---




6.
   N82185-UN-03NOV08


   N82353-UN-16APR09

   A - Solution Pump Switch

   B - Boom Section Switches

   Push solution pump switch (A) forward to engage solution pump.

---




7. Verify boom section switches (B) are in upward position.
