Using Rinse System (Rinsing Solution Tank and Boom)

1. NOTE: After solution tank has been drained, complete the following steps when using rinse system to clean solution tank and boom assembly.


   N66488-UN-15SEP04


   N82351-UN-15JAN09

   A - Master ON/OFF Switch

   B - Solution Pump Switch

   Start machine and operate at 1800 rpm.

---




2. Turn off master “ON/OFF” switch (A) and solution pump switch (B).

3. IMPORTANT: To avoid chemical getting into rinse tank, open Quik-Fill valve (A) and drain lines into bucket or suitable container. If lines do not drain in less than 1 minute contact your John Deere dealer.


   N81776-UN-15JAN09

   A - Quik-Fill Valve

   B - Suction Valve

   C - Pressure Bypass/Rinse Valve

   Turn suction valve (B) to “RINSE TANK” position.

---




4. Turn pressure bypass/rinse valve (C) to “TANK RINSE NOZZLE” position.

5.
   N82186-UN-03NOV08


   N81777-UN-03OCT08


   N81778-UN-15JAN09

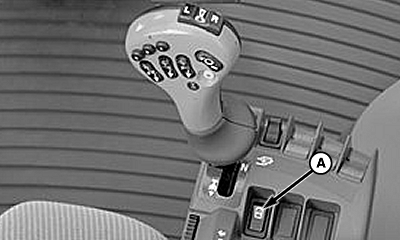

   A - Agitation Switch

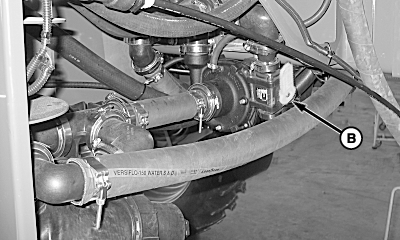

   B - Agitation Valve

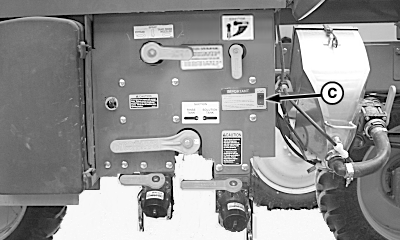

   C - Remote Pump Switch

   Depress agitation switch (A) to open electric agitation valve (if equipped).

---




6. Open agitation valve (B).

7. Move remote pump switch (C) to “LOAD” position.

   NOTE: When using remote solution pump switch (C), pump is designed to come up to operating speed slowly. Engine speed will automatically increase to 1800 rpm.

8. Add water to solution tank to thoroughly clean spray system. Add cleaning agents if necessary.

9.
   N81771-UN-15JAN09

   A - Handle

   Slightly raise eductor and pull handle (A) to unlatch eductor.

---




10. Lower eductor and raise lid.

11. NOTE:


    N81311-UN-15JAN09

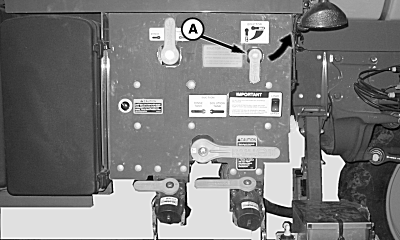

    A - Eductor Flow Rate Valve

    The eductor flow rate valve (A) is a variable rate valve that controls the flow rate of the eductor. The closer to the “MAX” setting, the greater the suction created for the eductor.

    Turn eductor flow rate valve (A) to full “MAX” position.

---




12.
    N81644-UN-22SEP08

    A - Eductor Hopper Valve

    B - Eductor Rinse Valve

    Open eductor hopper valve (A) (handle parallel with solution hose) to allow rinse solution to be drawn from eductor hopper.

---




13. Open eductor rinse valve (B) (turn clockwise) to rinse eductor hopper.

14. Close eductor rinse valve.

15.
    N81311-UN-15JAN09


    N81646-UN-22SEP08

    A - Eductor Flow Rate Valve

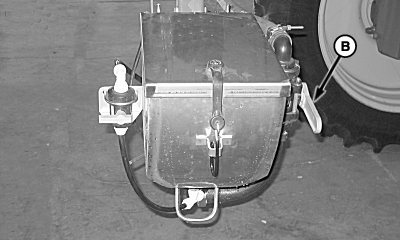

    B - Eductor Hopper Valve

    After verifying eductor is empty, close eductor flow rate valve (A).

---




16. Close eductor hopper valve (B).

17. Place lid back on hopper and lift eductor back to its original position.

18.
    N81779-UN-15JAN09

    A - Suction Valve

    B - Pressure Bypass/Rinse Valve

    C - Remote Solution Pump Switch

    Turn suction valve (A) from “RINSE TANK” to “SOLUTION TANK” position.

---




19. Turn pressure bypass/rinse valve (B) to “SPRAY” position.

20. Move remote pump switch (C) to “SPRAY” position.

21. Turn on spray system and spray rinse water through boom assembly and fence nozzles (if equipped).
